Crane Turning Device for Steel Coil

The crane turning device is a special lifting equipment used for hoisting and turning steel coils by 90° or 180°. Using belt slings, it achieves precise attitude adjustment from transportation to processing stations without damaging the steel coil surface. Through optimized structural design and force distribution, the equipment effectively eliminates potential safety hazards caused by traditional manual or simple hoisting methods, making it an indispensable auxiliary device in production workshops.

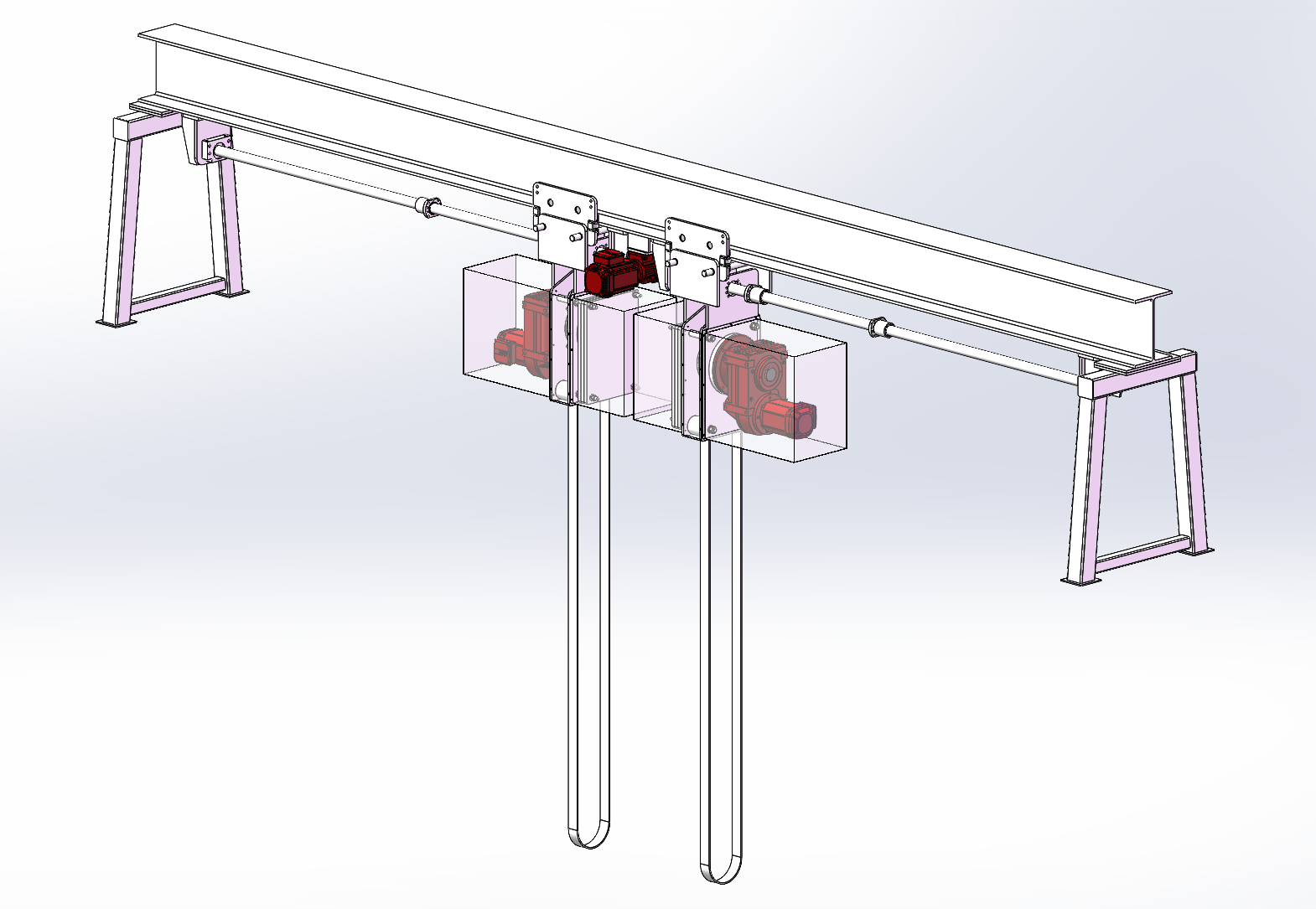

Structure of the Crane Turning Device

Load-Bearing Beam: Provides overall structural support and ensures equipment rigidity

Electric Turning Mechanism: Consists of motor, reducer and transmission components to realize turning action

Slings: Belt slings for securing steel coils and preventing damage during turning

Electrical Control System: Controls turning speed and direction for accurate operation

Safety Protection Devices: Including limiters, braking system and overload protection module

Hoisting Connection Parts: Connects with crane hooks or lifting beams

Technical Highlights of Crane Turning Device

• Driven by high performance motors, the turning mechanism runs smoothly and enables precise 0 - 360° turning.

• Entirely constructed from high strength alloy steel; key stressed parts are precisely calculated and reinforced, suitable for high-frequency heavy duty working conditions.

• Equipped with wear resistant composite material belt slings with high load capacity, preventing workpiece damage during turning.

• Can be used with overhead crane, featuring strong adaptability and easy system integration.

• Customizable design available based on steel coil weight, size, working environment and crane parameters to meet diverse customer requirements.

Technical Parameters (For Reference Only, Customization Supported)

Why Choose KUNFENG Load Turning Device

• Extensive industry experience, focusing on lifting and hoisting solutions

• Strict quality control in compliance with international standards

• Support for non-standard customization to meet complex working conditions

• Comprehensive after-sales service system ensuring long-term stable operation

If you are looking for a safe and reliable steel coil turning solution, please feel free to contact us for professional selection advice and customized services.

Frequently Asked Questions

Q: What are the advantages of electric turning devices over manual ones?

A: Electric turning features high efficiency, precise control and high automation, ideal for high-frequency heavy duty applications and modern production lines.

Q: How is safety ensured during turning?

A: The equipment is equipped with multiple safety protection systems, including mechanical locking, anti-slip clamping, limit protection and emergency braking, ensuring safe and controllable operation throughout the process.

Q: Can the turning device adapt to different specifications of steel coils?

A: Yes. By adjusting the lifting point spacing, it can adapt to steel coils of various sizes and weights.

Q: Is the maintenance cost of the turning device high?

A: The equipment features a simple structure and high durability. Routine maintenance only requires regular inspection of key components and lubrication, resulting in relatively low overall maintenance costs.
