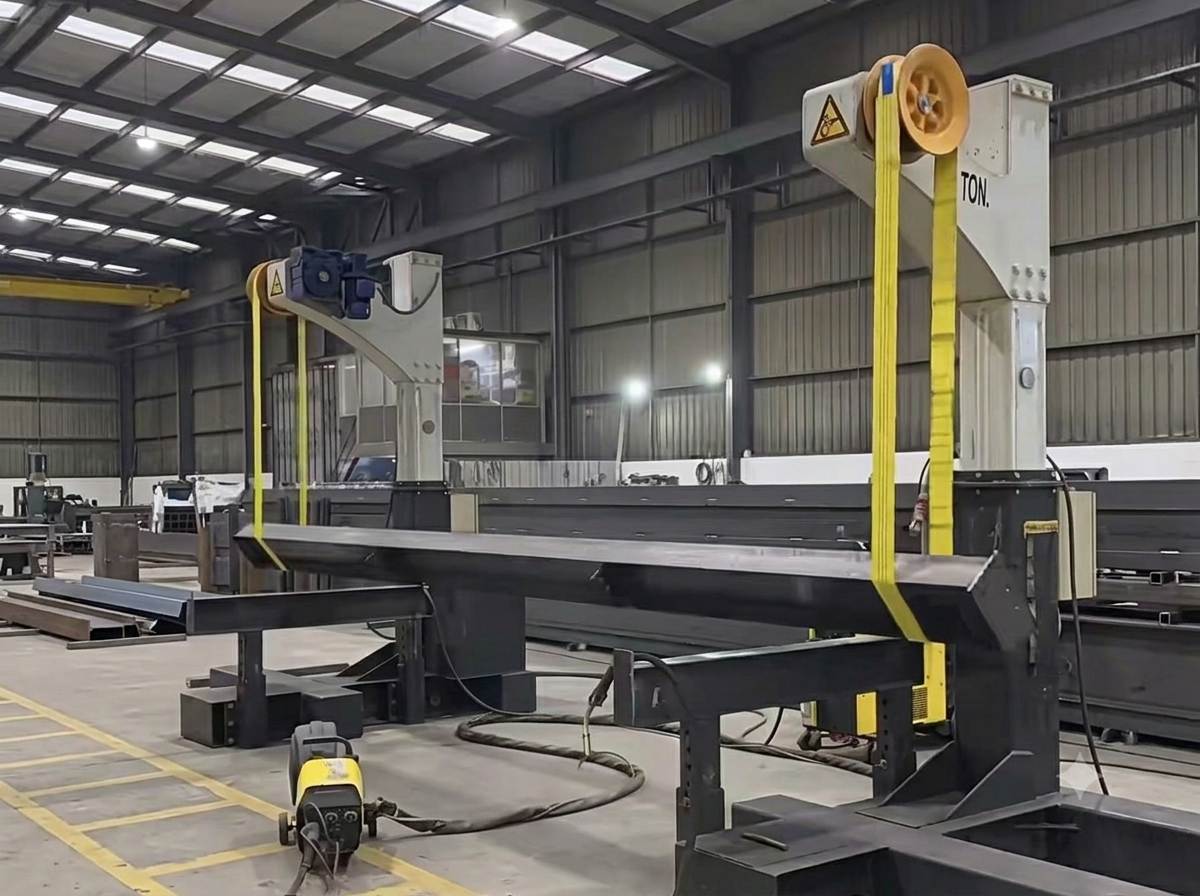

Belt Rotator for Rotating Steel Structure Components

The belt beam rotator is a heavy duty rotating equipment specially designed for steel structure fabrication, welding, assembly and surface treatment processes. Combined with high strength flexible load-bearing slings and the drive system, it enables steel structural components to rotate smoothly and be positioned accurately within 0° to 360°. It greatly boosts welding efficiency and effectively reduces operational risks caused by manual turnover.

Why Steel Structure Fabrication Requires a Beam Rotator

Steel structural components go through multiple processes including welding, grinding, spraying, inspection and assembly during production. To guarantee weld quality and operational convenience, workpieces need to be rotated repeatedly to the optimal working angle. The conventional turning method relies on overhead crane combined with manual adjustment, which is low in efficiency. It also tends to cause workpiece swinging, center of gravity shift and local stress deformation. This beam rotator utilizes synchronized dual-column lifting and belt-driven rotation technology to perform continuous or angle-specific turning operations. It cuts down manual intervention significantly, and improves production safety and process stability.

Key Advantages

• Improve efficiency of welding and assembly

• Reduce risks from manual turnover

• Enhance positioning accuracy

• Protect surface coatings of workpieces

• Prevent workpiece slipping

Working Principle of the Rotating Device

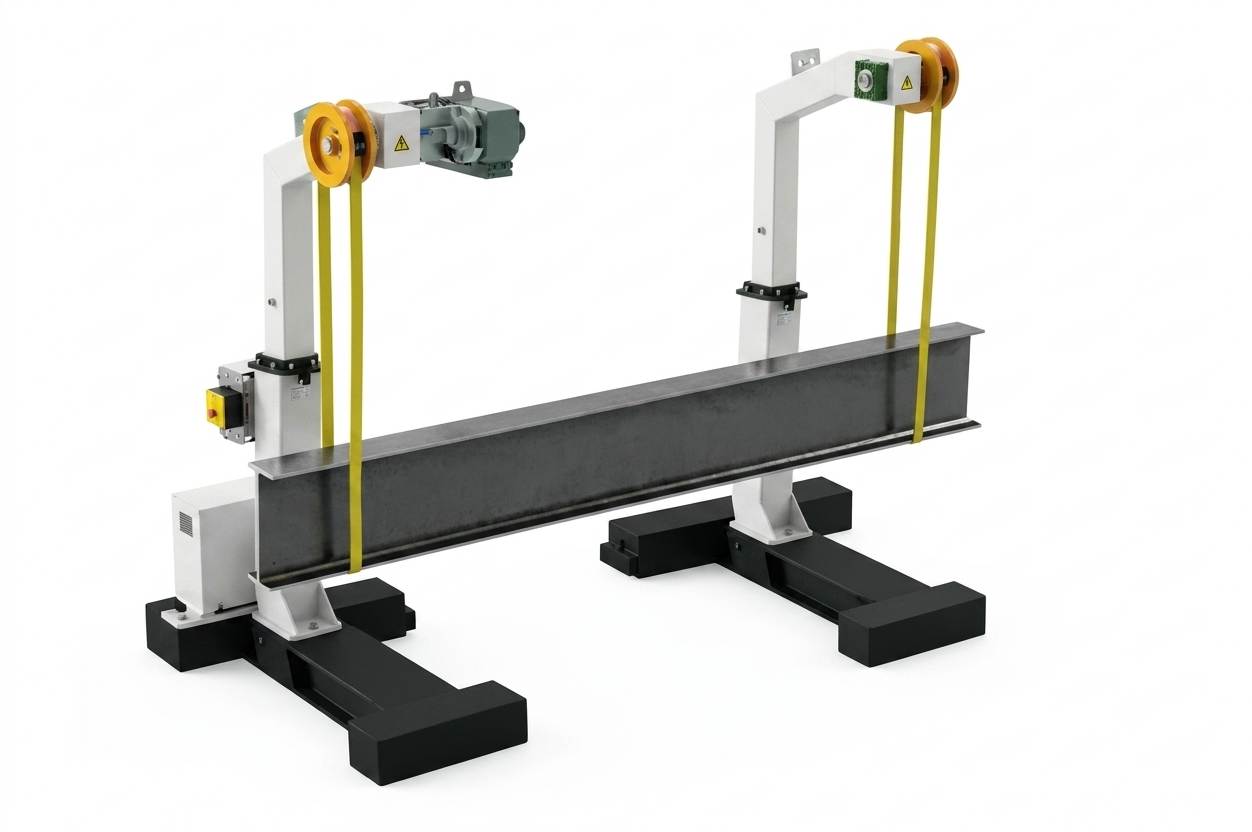

During operation, the steel structure workpiece is placed between two sets of load-bearing belt slings, which firmly support the workpiece via friction and wrapping force. Two supporting columns are hydraulically driven for automatic lifting and can be adjusted to proper heights according to workpiece dimensions. The drive motor works with the reducer to rotate the driving rollers, which in turn moves the load-bearing slings to achieve steady workpiece rotation. The whole rotation adopts variable frequency stepless speed regulation, allowing flexible speed adjustment based on workpiece size, weight and process requirements. Operators can control start/stop, forward/reverse rotation and angle positioning via control panel, wireless remote controller or PLC system.

Flexible Lifting Belt Technology Protects Steel Structure Surfaces

Compared with traditional chains, the use of high strength polyester lifting belts provides a larger contact area with the workpiece. This allows the load to be distributed more evenly, effectively reducing the risk of dents, scratches and structural deformation. For steel components that have already undergone surface preparation, sandblasting or primer coating, the flexible lifting belts help minimize secondary surface damage and maintain product quality.

Dual-Drive Synchronized Control Ensures Smooth and Accurate Rotation

The rotator adopts an independent dual-drive configuration with synchronized operation controlled by the variable-frequency system. During rotation, both drive units maintain identical operating speeds, ensuring the workpiece remains balanced at all times. Compared with single-drive systems, dual-drive synchronization offers superior stability and turning precision. Even when handling large steel structures with irregular centers of gravity, the equipment can maintain smooth rotation while minimizing load swinging and impact forces.

Ground-Mounted Design for Continuous Heavy Duty Operation

Built with a robust steel frame structure, the beam rotator is firmly installed on the workshop floor and requires no matching overhead crane, helping cut operational costs. Its outstanding overall rigidity and load capacity make it suitable for long-term, high-frequency industrial production.

Main Technical Parameters of the Belt Rotator (Customizable)

Ideal Solution to Improve Efficiency and Safety for Steel Structure Rotation

Whether handling H-beams, box girders, large welded fabrications, or heavy machinery frames, this rotating device can significantly improve productivity, reduce labor costs and enhance workplace safety. If you are looking for a professional steel structure turning solution, KUNFENG can provide customized lifting and rotation solutions tailored to your specific production requirements. Contact us today for professional technical support and customized quotation.
