Sand Moulding Boxes Chain Load Turning Device Exported to Bolivia

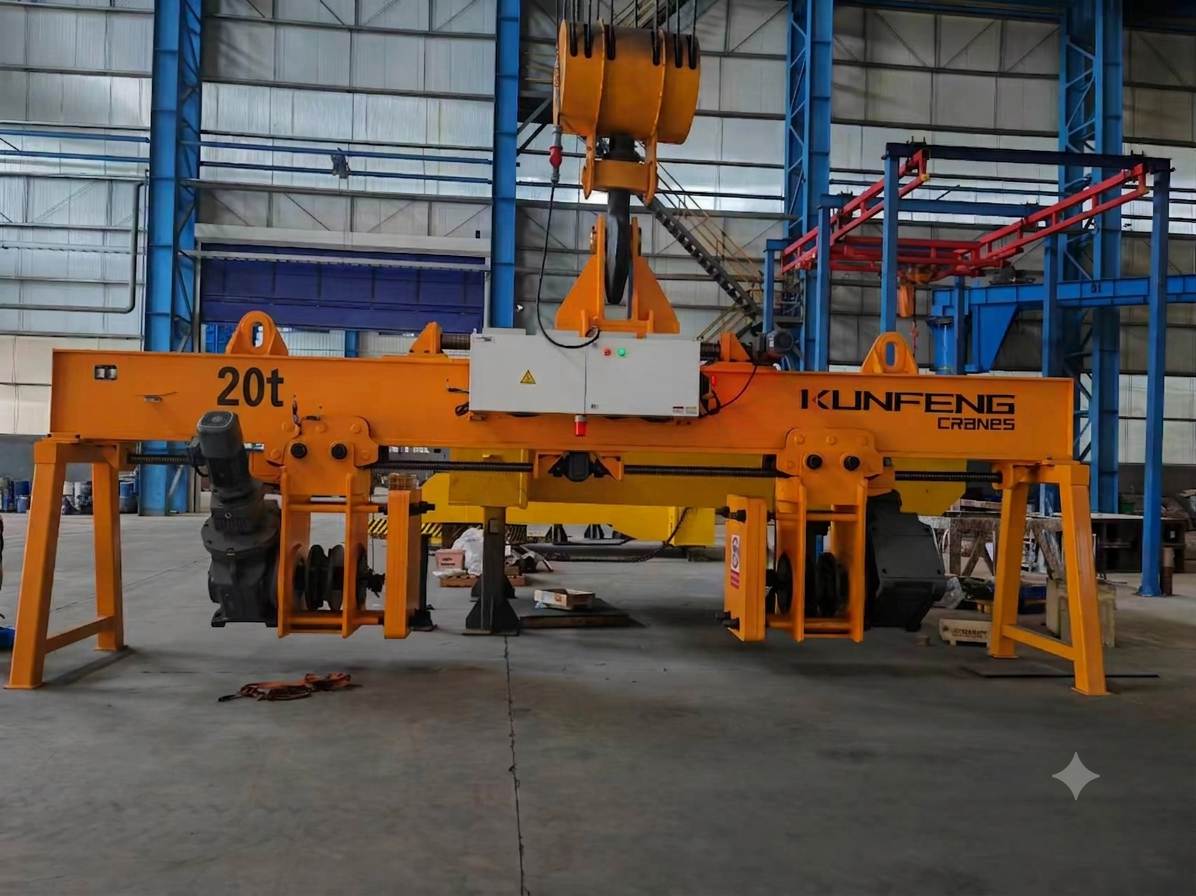

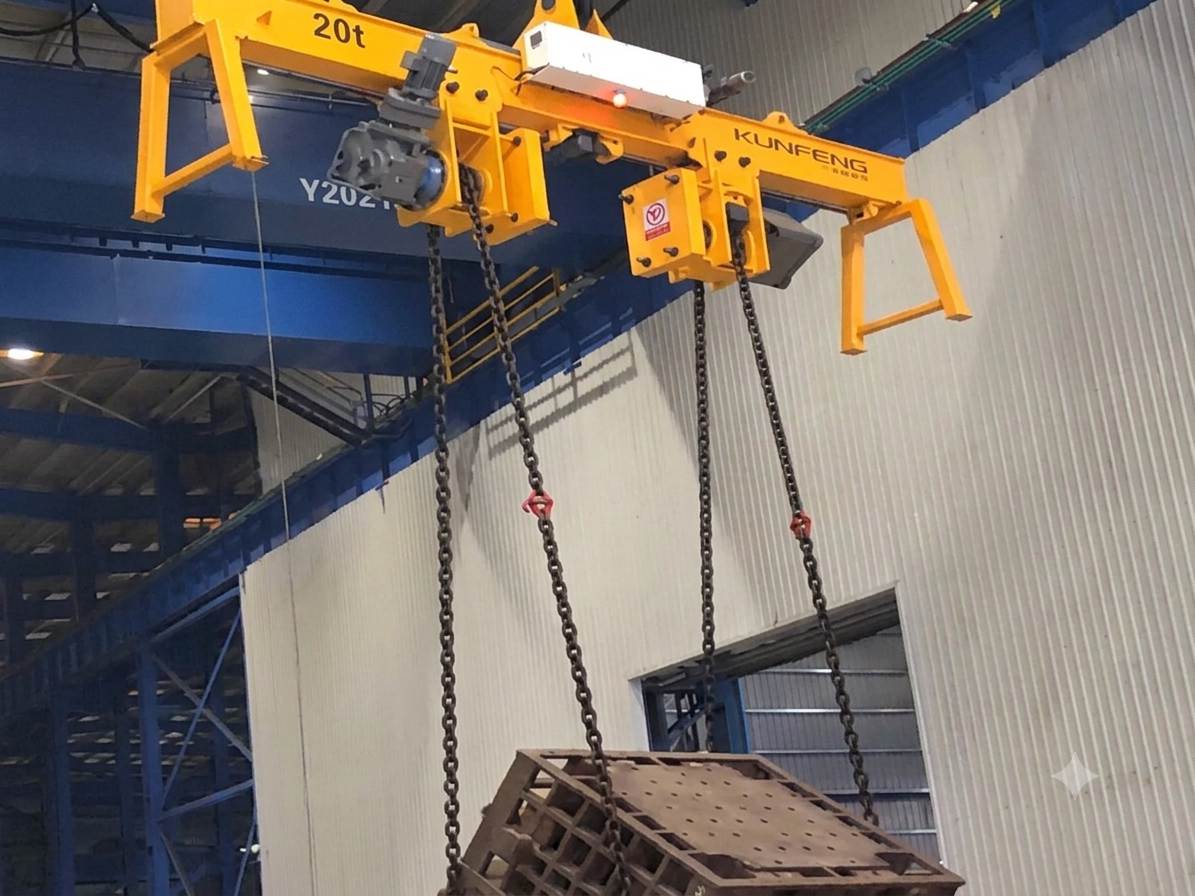

KUNFENG load turning device is a lifting and rotating equipment designed to work in conjunction with overhead crane, enabling the safe turning and handling of sand boxes, molds and other heavy box-type workpieces. The turning device features dual-chain synchronous drive system, allowing smooth and controlled rotation of loads from 0° to 360° through motorized operation.

Our engineering team customized the turning system with an automatic load-balancing chain mechanism, ensuring even load distribution and stable operation throughout the rotation process. This design effectively eliminates the safety risks associated with traditional manual-assisted turning methods while improving operational efficiency and workplace safety.

Project Background and Client Requirements

• Country: Bolivia

• Industry: Foundry Processing Plant

• Specific Use and Demand: Chain load turning device for handling of large sand moulding boxes.

Information provided by the client:

• Max dimensions  : 6 L x 5 W x 3 H Meter

• Work piece weight : 20 tons

• Material of work piece : Sand Casting Mould

• With adjustable driving wheels : Minimum distance 2750 mm

• Frequency of turning operation : Once or twice a hour

• Turning angle : 90, 180 degree. Sometimes 360

• Capacity of crane : 25 tons

• Lifting height:  8-10 meters

• Size of hook : Single hook

• Single crane used for turning

• Operation voltage : 220-240 Volts AC

Advantages of Chain Load Turning Device

• Constructed with high quality alloy steel chains and high strength load-bearing structure design to ensure stable operation even under heavy-load working conditions, effectively extending the service life of the equipment.

• Provides precise load rotation from 0° to 360°, enabling accurate positioning and enhanced operational safety during handling and turning processes.

• Features a torque-balanced design that maintains even load distribution throughout the rotation process, significantly reducing impact forces and protecting the integrity of the sand mold structure.

• Adjustable lifting point spacing allows the turning device to accommodate different sand box sizes, offering excellent versatility and future scalability.

• The entire structure is treated with anti-corrosion coatings and reinforced surface finishing, making it well-suited for the demanding operating environments commonly found in South American foundries and metal casting facilities.

Project Implementation Results

After delivery, installation, and on-site commissioning of the load turning system, the client's production line achieved significant improvements in the sand box handling and turning process:

• Turning efficiency increased by more than 55%.

• Manual labor involvement was significantly reduced.

• Sand mold damage rates decreased by approximately 80%.

• Workplace safety was greatly enhanced.

• Perfect compatibility with the existing overhead crane

Why Choose KUNFENG Load Turning Device

• With many years of experience in designing and manufacturing load turning system, we have a deep understanding of the needs of the foundry industry and can provide customers with reliable and efficient turning solutions.

• We support tailoring equipment according to the specific needs of customers, including turning angle, load capacity, working size, etc., to ensure that the equipment perfectly matches the requirements of the production line.

• We provide comprehensive technical support, installation and commissioning, as well as repair and maintenance services to ensure that the equipment is always in the best operating state.

If you are looking for rotating equipment suitable for foundry sand flask turning, large mold flipping, or heavy workpiece rotation, we can provide customized solution based on workpiece weight, dimensions, turning angle and production process requirements. Contact us today to discuss your application and obtain detailed technical information as well as a tailored quotation.
