360° Industrial Load Turning Devices & Rotators

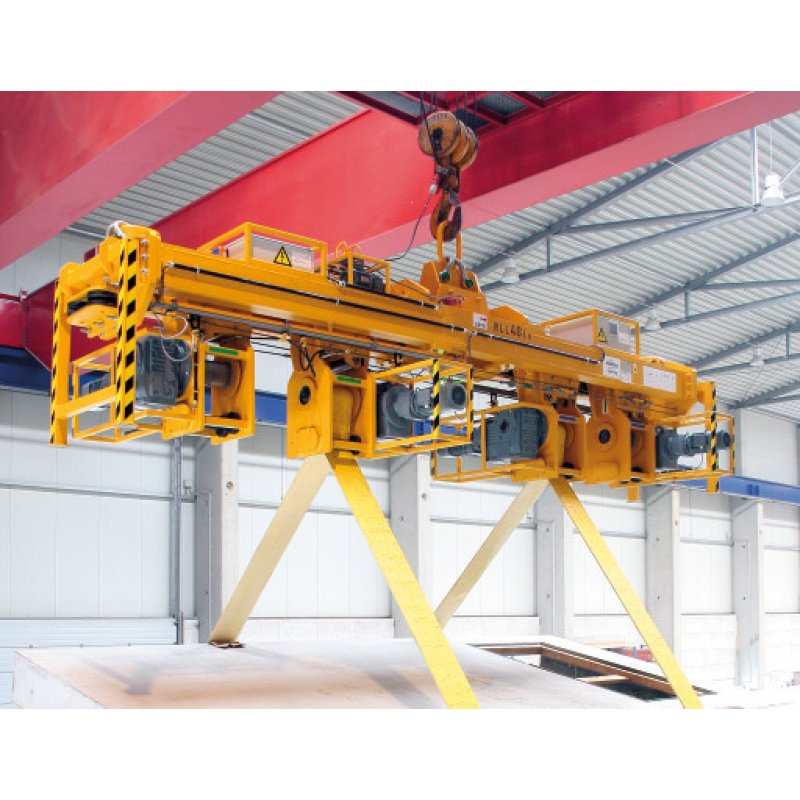

Anindustrial load turning device (also known as a load rotator) is an essential auxiliary lifting tool designed for safely turning heavy workpieces. It is suspended directly from the crane hook and driven by a motor to achieve precise turning and positioning of loads during hoisting operations. Featuring a compact structure and easy installation, the device can be flexibly adapted to various workpiece sizes and weights. Widely used in mechanical processing, mold manufacturing, and automotive production, it significantly improves hoisting safety and efficiency while eliminating the high labor intensity of manual turning.

Working Principle

The working principle of a load turning device is based on the seamless integration of a mechanical transmission and an electric drive system. The device secures the load via slings or gripping elements and utilizes a built-in electric drive mechanism to rotate the turning shaft, ensuring a smooth rollover. During operation, power from the motor is transmitted through a precision gear or chain set to rotate the load to a predetermined angle. Meanwhile, integrated balance-adjustment mechanisms keep the center of gravity stable throughout the turning process, effectively preventing shaking, slipping, or imbalance.

Key Advantages

High-Precision Positioning: Equipped with an advanced high-precision drive system, it delivers exact turning and positioning to meet rigorous industrial standards.

Mar-Free Surface Protection: Features specialized sling designs and smooth drive mechanisms to eliminate shock and minimize surface damage to sensitive workpieces.

Flexible Angle Adjustments: Supports versatile flipping angles, easily accommodating operations from 90° to 360° to suit various manufacturing requirements.

High Efficiency & Automation: Dramatically shortens turnaround times, enhances operational efficiency, and reduces manual intervention and labor costs.

Easy Crane Integration: Designed to mount directly onto the hook of a bridge or overhead crane without requiring complex structural modifications, saving both installation time and costs.

Typical Applications

Mold Manufacturing: Flips large stamping molds, injection molds, and die blocks to facilitate routine cleaning, maintenance, and inspection, thereby extending mold service life.

Steel Structure Fabrication: Rotates heavy components such as steel beams, plates, and welded frames to streamline welding, coating, and cutting operations.

Automotive Manufacturing: Optimizes assembly and maintenance workflows by safely flipping structural components like frames, chassis, and engine blocks.

Shipbuilding & Heavy Industry: Used for turning heavy structural parts, plates, and sub-assemblies to ensure high precision during fabrication and welding.

Ready to Enhance Your Workshop Safety and Efficiency?

Upgrade your lifting operations with a reliable industrial load turning device tailored to your specific application. Contact our engineering experts today for a custom specification sheet, technical support, or a free quote! Request a Quote Now.
