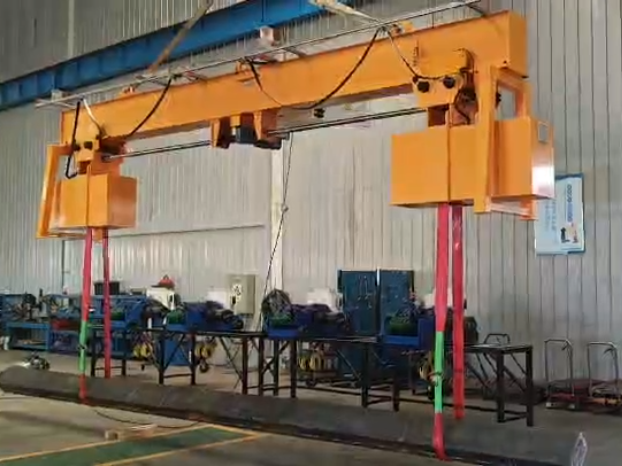

The load turning units for rotating steel structures is a specialized lifting device designed for lifting, rotating, and precisely positioning heavy loads. Its electric drive enables smooth 0-360° turning. It is widely used in assembly, welding, painting, and inspection processes, significantly improving production efficiency while reducing labor intensity and safety risks.
Key Advantages of the Load Turning Units
● It supports tilting workpieces ranging from lightweight tooling to large components weighing tens of tons. Center of gravity verification and force analysis are performed during design.
● Precise angle control (typical positioning accuracy is ±0.5° to ±1°) makes it suitable for assembly and subsequent processes.
● A belt drive effectively protects workpieces from damage.
● Mechanical and electronic dual limit stops, emergency stop, and overload protection provide multiple safeguards for production safety.
● Customized solutions can be tailored to workpiece size, weight, center of gravity, and production cycle.
Typical Application Scenarios
● H-beam and box beam lifting and turning
● Assembly and inspection of large machine frames and carriages
● Turning over welded steel components
● Positioning and turning sand casting molds
Key Product Selection Points
● Provide complete workpiece information: Including weight, dimensions, center of gravity, material, and surface sensitivity (scratch susceptibility).
● Define the turning process and cycle time: Single-piece turning cycle, whether multiple stops are required, or whether interoperability with other equipment is required.
● Site and Installation Requirements: Installation space and mounting method.
● Safety and Certification Requirements: Whether explosion-proof, corrosion-resistant, or industry-specific certifications are required.
● Maintenance and Spare Parts: Confirm the brand/specification and maintenance intervals of key components to reduce downtime risks.
We can provide load turning units for cranes to meet your workpiece turning needs. Please contact our technical team for a free customized solution and quote.
