Powerful Manufacturer of Turning Devices

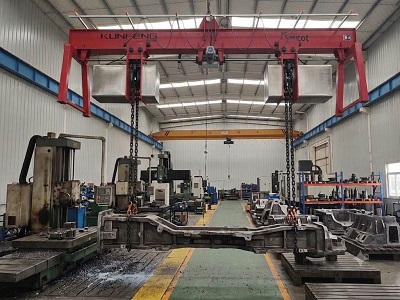

Load turning units suspended from cranes are a type of lifting and rotating system designed for the turning, assembly, and maintenance of vehicle frames, chassis, large workpieces, and special-shaped parts. Suspended from the crane hook, these units combine a rigid slewing mechanism with precise drive control to achieve smooth rotation and multi-point positioning of heavy-loaded workpieces within 0°–360° range, enabling reliable and safe turning operations on production lines.

Load Turning Device Components and Operating Principle

  ● Slewing Mechanism: High-rigidity slewing bearings and gear reduction or precision reducers ensure low deflection and stable load distribution.

  ● Drive Units: Servo/variable frequency motor drives the slewing element through a reducer, achieving smooth rotation and precise angle control.

  ● Transmission Method: High-strength fiber belts or chains are used to lift and rotate the workpiece.

  ● Control System: Precisely control the turning angle via a remote control, allowing for hovering at any angle.

  ● Safety Protection: Mechanical limit stops/buffers, electronic overspeed/overtorque detection, and redundant brakes.

Advantages of Load Turning Device for Cranes

  ● Can be directly mounted on an existing crane, eliminating the need for major modifications to the production line or foundation.

  ● The uniform and smooth turning process prevents surface damage to the workpiece caused by bumps and scratches.

  ● Support remote control, allowing the operator to stay away from the load and the tilting area, ensuring personal safety.

  ● Automatically adjust balance based on force distribution to prevent the workpiece from shaking or slipping.

  ● The turning solution can be customized to meet the specific load and workpiece requirements.

Common Applications

  ● Turnover, assembly, and painting of automobile chassis and frames

  ● Angle adjustment and welding of steel structures and large components

  ● Overhaul and positioning of marine engines

  ● Turning over casting sandbox molds for inspection and preparation

Looking to configure or upgrade a load turning solution for your production line? We will provide the most suitable turning device selection and customized design based on your workpiece type, working conditions, and load requirements. Please feel free to contact our team of technical experts for a personalized quote.
