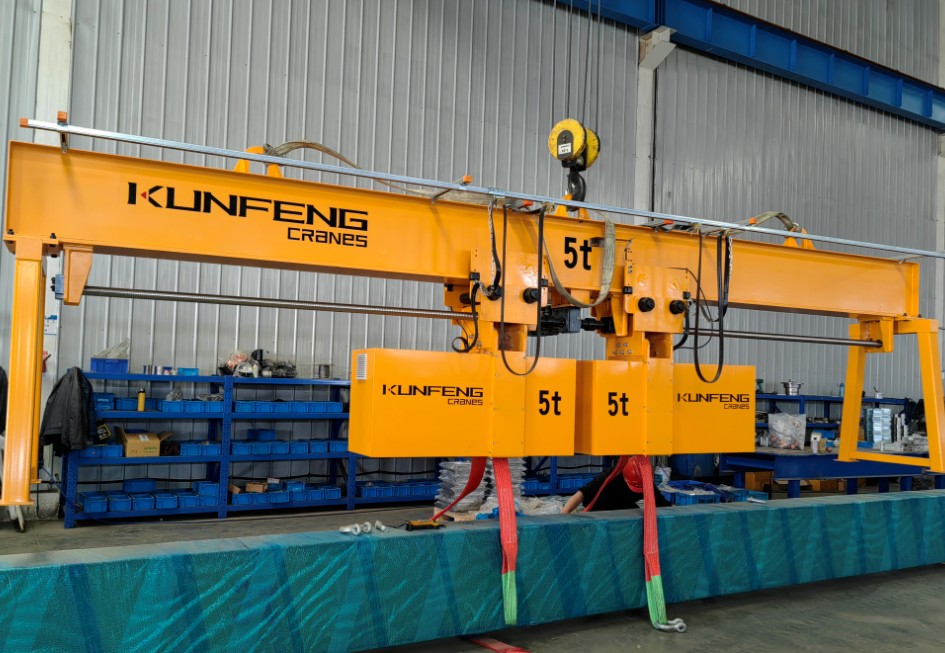

10 Ton Capacity Turning Device for Overhead Cranes

KUNFENG load turning device is a device installed under the hook of overhead cranes, which allows 0 - 360° turning of workpieces after they are lifted. Integrating the dual functions of "lifting + turning", the turning device is widely applied in manufacturing workshops, assembly lines and welding stations, serves as an important auxiliary equipment for improving workshop safety and production efficiency.

Operating Principle of the Load Turning Device

The turning deivce adopts an electric drive mode and works in conjunction with overhead cranes:

• The crane lifts and moves the workpiece

• The turning device drives the workpiece to rotate by motors, reduction gear mechanisms or automatic balancing structures

• Enables smooth turning of the workpiece in mid-air or at designated positions

• The turning angle can be controlled at 90°, 180° or any specified angle

Advantages of the Load Turning Device

• Enhances operational safety

• Flexibly adapts to various workpieces

• Equipped with automatic balance adjustment function

• Compatible with existing overhead bridge cranes

• Wireless remote control for easy operation

• Supports modular customization

Equipment Selection Recommendations

• Specify the maximum weight and dimensions of the workpiece

• Determine the turning angle and frequency

• Match with the rated load capacity of the overhead crane

• Select chain slings or belt slings

Frequently Asked Questions

Q: Will the turning device affect the rated load capacity of the overhead crane?

A: Yes, it will. The turning device must match the rated load capacity of the overhead crane, and a safety margin shall be reserved during the design phase.

Q: Can it be universally used for workpieces of different shapes?

A: Yes. The lifting point positions can be adjusted to accommodate workpieces of various shapes.

Q: Is the turning speed of the turning device adjustable?

A: Yes, the turning speed can be adjusted according to the customer's production cycle.

KUNFENG CRANES provides technical consultation, customized design and after-sales service -- please feel free to contact us for free technical evaluation and quotation.
