4 Ton Beam Rotator Turning Device Exported to Thailand

Client Background

Our client is a steel fabrication workshop in Thailand that currently needs to perform turnover operations for their I-beams. However, their existing bridge crane can only satisfies the lifting requirements and cannot fulfill the flipping needs. Therefore, they are looking for a belt-type beam rotator turning device capable of meeting the steel beam turnover requirements in their workshop.

Client Requirements

Load capacity: 4 tons

Turning angle: 180 degrees

Lifting method: fiber belt

Power: 380v / 50hz, 3-phase

Drive method: electric drive

Installation method: fixed to the hook of the bridge crane

Our Solution

Based on the specific operating conditions of the Thai steel processing plant as well as their technical requirements, we have further proposed the following professional recommendations tailored to their site environment:

Surface Protection & Safety: We recommend using high-strength, wear-resistant, and cut-resistant fiber belts. This prevents scratching the I-beam coating during the 180° turnover process.

Bridge Crane Compatibility Check: Given that the equipment is directly suspended from the hook of the existing bridge crane, we recommend that the client calculate the total load margin of the bridge crane to ensure overall lifting safety.

Operational Clearance: We remind the client to evaluate the internal operating radius and headroom of the workshop to ensure that during the 180° rotation of the I-beams, there will be no interference with factory columns, other equipment, or personnel.

Electrical Safety: In view of the voltage fluctuations and relatively high temperature and humidity in some industrial areas of Thailand, we recommend equipping the electrical control box with overload protection, phase-loss protection, and waterproof/dustproof designs of IP54 to extend the service life of the equipment.

Project Achievements

Our solution successfully resolved the client's bottleneck of lifting without flipping, achieving safe and efficient 180° turnover for 4-ton I-beams. It ensures zero surface scratches via flexible fiber belts and eliminates the need for crane structural modifications through a hook-suspended design. Combined with IP54 protection and electrical optimizations, it ensures long-term, stable operation under high-temperature and high-humidity conditions.

Kunfeng Crane - Professional Load Turning Devices Manufacturer

At Kunfeng Crane, we go far beyond simply fulfilling basic equipment specifications. Leveraging our deep industry expertise and manufacturing experience since 2003, we analyze our clients' actual working conditions and operational environments to provide customized, professional engineering recommendations. As a trusted global brand providing every custom Load Turning Device for Cranes, we are committed to delivering reliable, high-performance, and safe lifting solutions tailored to every workshop's unique needs.

Contact Kunfeng Crane today to get your customized solution and a prompt quote tailored to your specific steel fabrication needs.

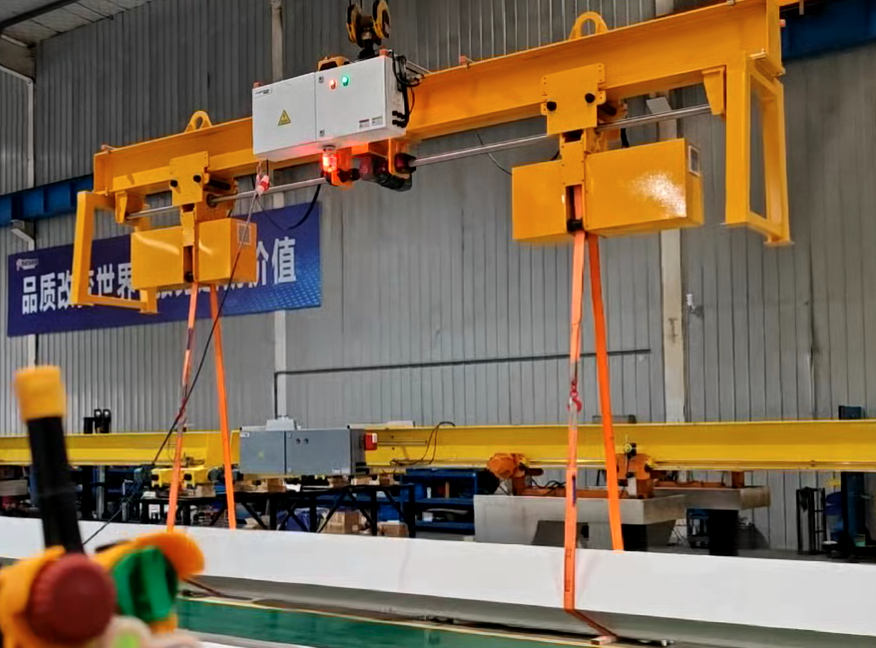

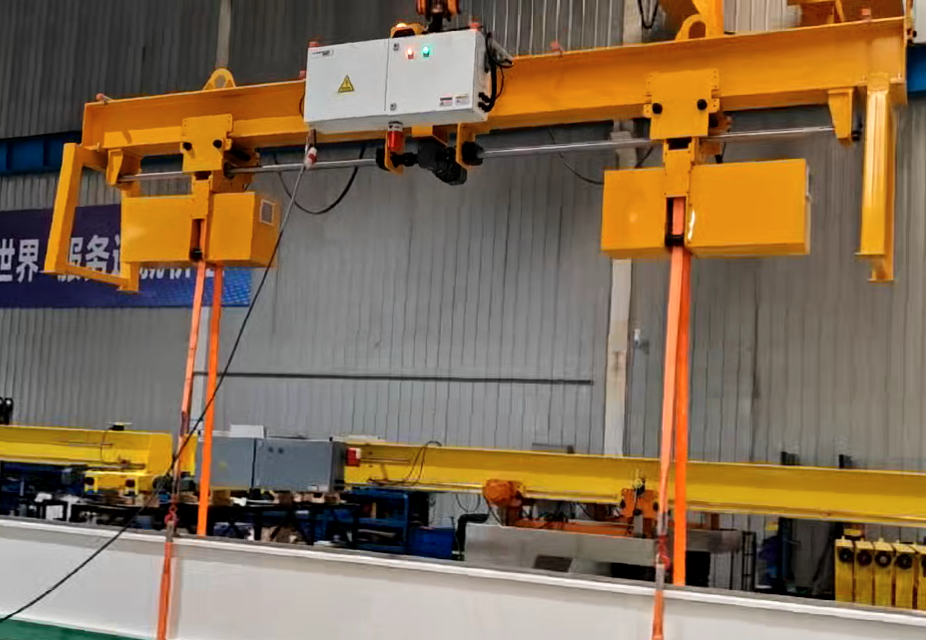

Pre-shipment Load Testing for 4 Ton Beam Rotator Turning Device
