Load Turning Units for Irregular Workpieces

Load turning units are industrial equipment designed for rotating and manipulating workpieces with complex shapes and uneven weights. They achieve safe clamping, smooth rotation and precise positioning of irregular workpieces through flexible clamping systems, precise electric control and efficient transmission mechanisms. The turning device is suitable for machining, welding, assembly and inspection processes, especially in automobile manufacturing, large equipment manufacturing and aerospace.

Working Principle of Rotator Turning Device

360 degree rotating mainly relies on efficient drive systems, precise control technology and flexible clamping mechanisms. The turning device drives the multi-axis rotation system through servo motors or stepper motors to achieve continuous and smooth rotation; with PLC or intelligent controllers, users can accurately set the rotation angle, speed and direction; the clamping mechanism (such as chains or belts) firmly fixes the workpiece, while the dynamic balance regulator keeps the center of gravity stable. Multiple safety devices such as limit switches and overload protection ensure safe operation. The overall system design is flexible and reliable, suitable for all-round processing needs of various workpieces.

Design Features of Load Turning Units

• Support 360 degree rotating of workpieces to meet the operation needs of different angles and directions.

• Usually equipped with servo motors to ensure smooth, accurate and efficient turning action.

• PLC or human-machine interface control is adopted, which is easy to operate and the rotation angle, speed and turning sequence can be set to meet different process requirements.

• Made of high quality materials, good load-bearing capacity and impact resistance to ensure long-term stable operation.

• Suitable for irregular or large workpiece turning operations in multiple industries such as automobile manufacturing, mechanical processing, logistics, etc.

Case Study: Turning Special-Shaped Castings in a Foundry Workshop

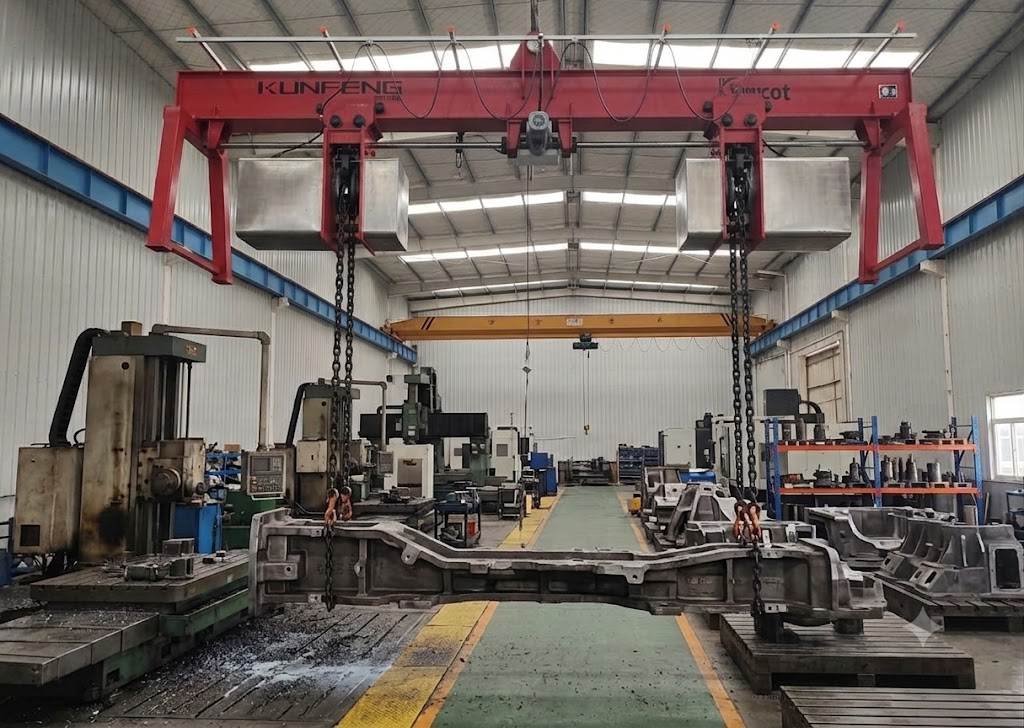

During production at a large foundry enterprise, castings after pouring feature complex structures and weigh more than 10 tons. Traditional lifting methods cannot ensure stable turning during the process. After introducing the KUNFENG load turning device and integrating it with the existing overhead crane in the workshop, the enterprise secures the castings with chain slings and completes 90° and 180° turning operations via the electric rotating mechanism.

The rotating equipment effectively controls the change of the casting' s center of gravity during operation, avoiding collision and impact during turning and reducing manual auxiliary adjustment time. Compared with traditional lifting and rotating methods, this turning solution improves on-site operation efficiency and enhances the safety environment for operators.

Partner with a Professional Load Turning System Manufacturer

KUNFENG load turning system is designed for efficient turning and rotating irregular or heavy workpieces. With its 360 degree full-range rotation function, precise electric drive system and intelligent control, it can meet various complex process requirements. Click to contact us and send your requirements, our technical engineers will provide you with the best solution and quote as soon as possible!

Frequently Asked Questions of Load Turning Device

Q: What types of irregular workpieces can be flipped?

A: Wind turbine blades, impeller components, diesel engines, gearboxes, molds, steel structures, large special-shaped welded parts, precision equipment, asymmetric parts, etc.

Q: Can turning device be used together with an overhead crane?

A: Yes. It can be hung on the crane hook to realize lifting and flipping of workpieces.

Q: Is the installation and maintenance of your rotating equipment complicated?

A: Installation: modular structure for fast on-site assembly. Maintenance: low-maintenance design; only regular inspection of key components (straps, motor, control system) is required.

Q: How to choose the right load turning units?

A: We recommend that customers provide workpiece dimensions, weight, flipping angle and frequency, operating environment and control method. We will provide a customized design solution free of charge.
