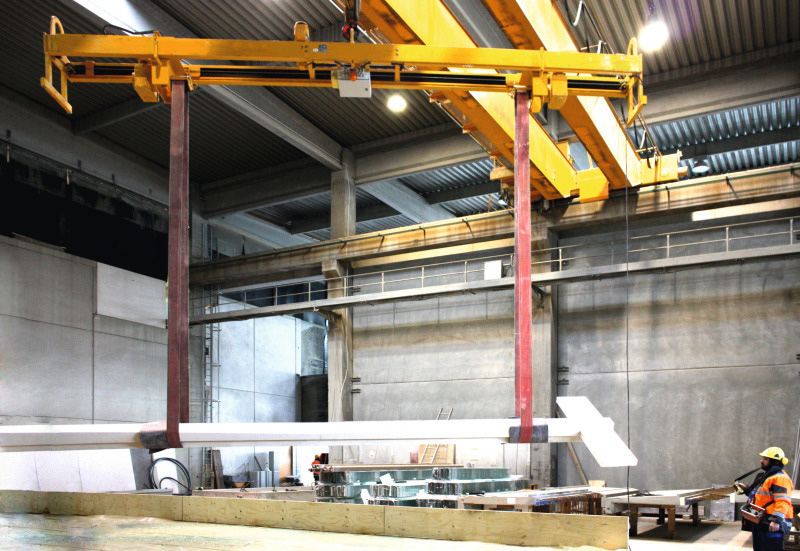

The industrial suspended turning device is a crane assisted handling solution specifically designed for large steel structures, welded components and heavy duty workpieces. Through electric control, synchronous chain or belt drive operation, the turning device enables controlled 180° or 360° rotation of workpieces, helping operators quickly adjust welding positions and significantly improve welding quality and production efficiency.
How to Achieve Smooth Turning and Precise Control
High Strength Load-Bearing Structure
The main frame is typically fabricated from thick steel plates and structural steel sections, providing excellent load-bearing capacity and deformation resistance. It can meet the turning requirements of workpieces ranging from several tons to dozens of tons.
Synchronized Drive System
The equipment commonly adopts dual chain or belt slings synchronized drive and motor-controlled operation to ensure even force distribution during rotation, effectively preventing unbalanced loading or tilting.
Rotational Control Mechanism
By combining reducer, motor and rotating shaft system, the device achieves smooth and stable rotation of welded workpieces. Depending on operational requirements, it can perform 90°, 180° turning or continuous 360° rotation.
Safety Protection System
To ensure operational safety, the equipment is typically equipped with limit protection, emergency stop systems, overload protection and anti-fall safety designs, effectively reducing safety risks during the turning process of large workpieces.
Advantages of Rotator Device in Welded Structure Processing
Traditional manual turning with overhead crane requires repeated lifting, while the rotator turning device completes lifting and rotation in one operation, greatly improving efficiency and reducing operational risks.
The device keeps the workpiece at the optimal welding angle, allowing operators to perform welding tasks in a safer and more stable working position.
Stable and controllable turning helps minimize welding deformation and weld seam deviation, improving overall machining accuracy.

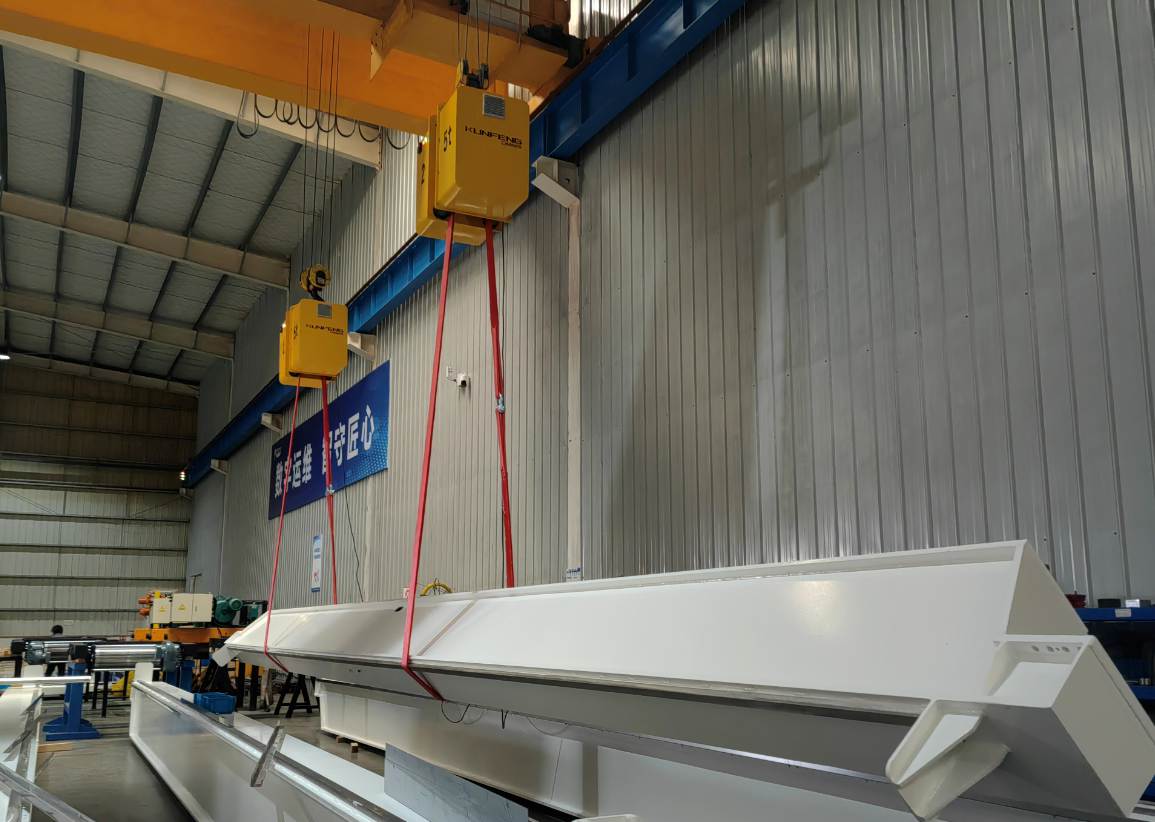

High strength flexible belt slings can also be selected to protect the workpiece surface from damage during the turning process.
It can be integrated with existing overhead crane in the workshop without major on-site modification.
Suitable for Various Industrial Applications
Steel Structure Manufacturing: H-beam turning, box girder rotation, steel pipe welding, bridge structural component processing.
Automotive Manufacturing: Turning, painting and assembly of vehicle bodies and chassis.
Wind Power Equipment Manufacturing: Suitable for rotating tower sections, wind turbine blades and large circular welded components.
Shipbuilding Industry: Used for turning and assembling large ship sections and offshore platform structural components.

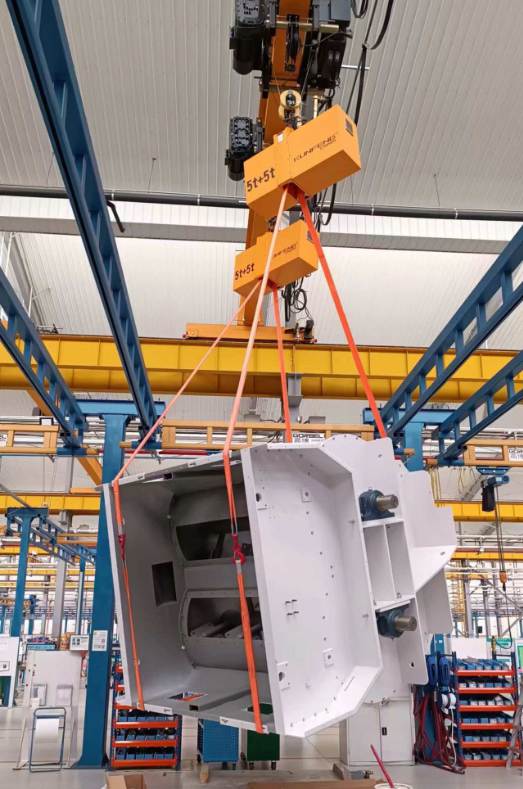

Heavy Equipment Manufacturing: Enables safe turning and precise positioning of large equipment bases, machine housings and industrial frames.
Customized Turning Solutions for Your Production Needs
KUNFENG is a professional manufacturer of industrial load turning devices, providing customized solutions tailored to customer production requirements to help improve operational efficiency and workplace safety.
Customized solutions include:
Special shaped workpiece clamping structures
Heavy load turning system design
Dual-station synchronized turning system
Mobile turning solutions
Providing Integrated overhead crane system
Load turning device for welded structural components have become indispensable auxiliary equipment in modern steel structure manufacturing and heavy welding industries. Feel free to contact our engineering team and send us your specific requirements. We will provide you with detailed product information and professional technical support.
