Adjustable rotating lifting beam adopts high-strength alloy steel and modular design, integrating lifting, translation and rotation functions. The maximum load is 50 tons, supporting 0°-360° stepless rotation and free width adjustment. It is equipped with intelligent servo control system and anti-sway technology, which can achieve millimeter-level positioning accuracy. It is suitable for scenes such as automobile assembly, precision manufacturing, warehousing and logistics, and meets the flexible handling and precise positioning requirements of heavy materials in small spaces. It has durability, safety and high efficiency, helping enterprises optimize space utilization and production efficiency.

Customer background and equipment requirements

  ● Country: Spain

  ● Industry: Automobile manufacturing

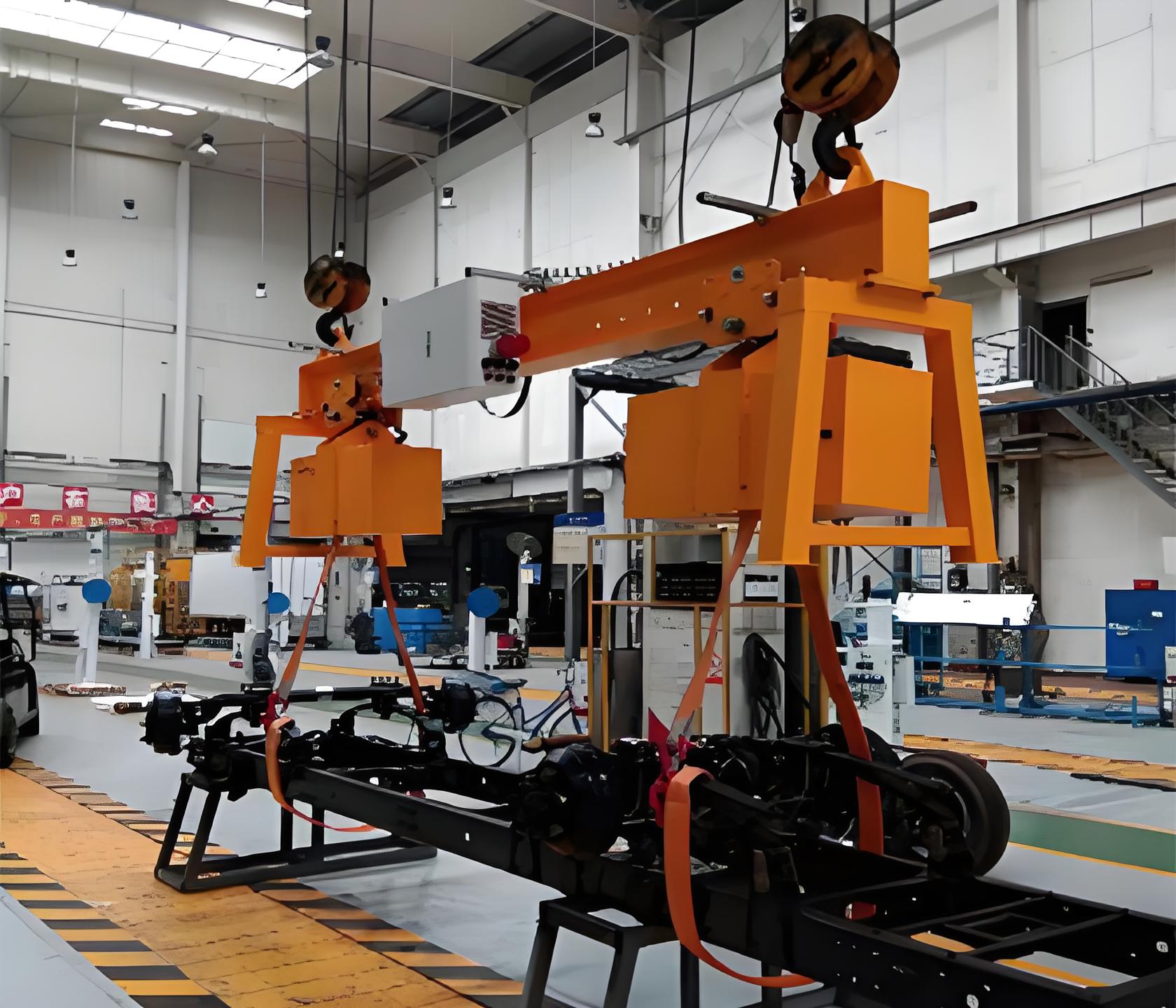

  ● Equipment use: For chassis assembly

Demand description

  ● Chassis length: 7600-10000mm

  ● Chassis width: 1000-2000mm

  ● Maximum load: 5t

  ● Turning angle: 180°

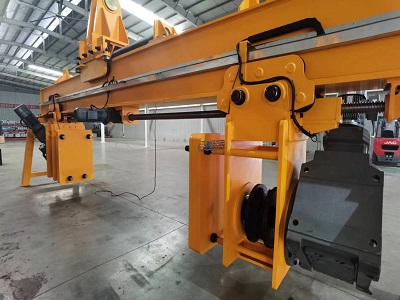

  ● Turning mechanism: adopts integral structure, electric turning, frequency conversion control, lifting belt form

  ● Lifting belt material: fiber belt

  ● Compatibility: compatible with various types of vehicle chassis

  ● Lifting mechanism: adopts dual electric hoist drive mode, synchronous lifting

  ● Work efficiency: lifting speed is not less than 2m/min, the operating speed of the electric hoist system is not less than 20m/min, and the turning speed is 1~2min/r

  ● Electrical system: three-phase power supply AC380V±10%, 50Hz

Key advantages of adjustable rotating lifting beam

  ● Integrating lifting, rotation and positioning, it can complete the flipping and positioning of complex workpieces without multiple devices;

  ● Adopting high-strength alloy steel material and matching intelligent servo control system, it can achieve millimeter-level positioning accuracy and ensure stable operation of heavy materials;

  ● Equipped with variable frequency speed regulation and electronic limit, the lifting and rotation process is smooth and impact-free, and the positioning accuracy can reach ±1°;

  ● Built-in overload protection, emergency stop button and mechanical locking device, multiple protections ensure operation safety;

  ● Widely used in automobile assembly, precision manufacturing, port logistics and other fields, especially suitable for production scenarios with limited space.

Reasons for customers to choose us

  ● KUNFENG has rich industry experience and professional technology, and can provide highly customized solutions to meet the needs of different working conditions and workpieces;

  ● Adopting high-quality materials and advanced manufacturing processes to ensure high structural strength and long service life;

  ● The design focuses on humanization and efficiency, with features such as height adjustment, 360° rotation, and precise positioning;

  ● Provide complete after-sales service and technical support to ensure that customers have no worries during installation, commissioning and use.

Choosing our rotating lifting beam is not only choosing a piece of equipment, but also choosing an efficient, safe and sustainable intelligent handling solution. Contact us now to get free customized design and preferential quotation!
