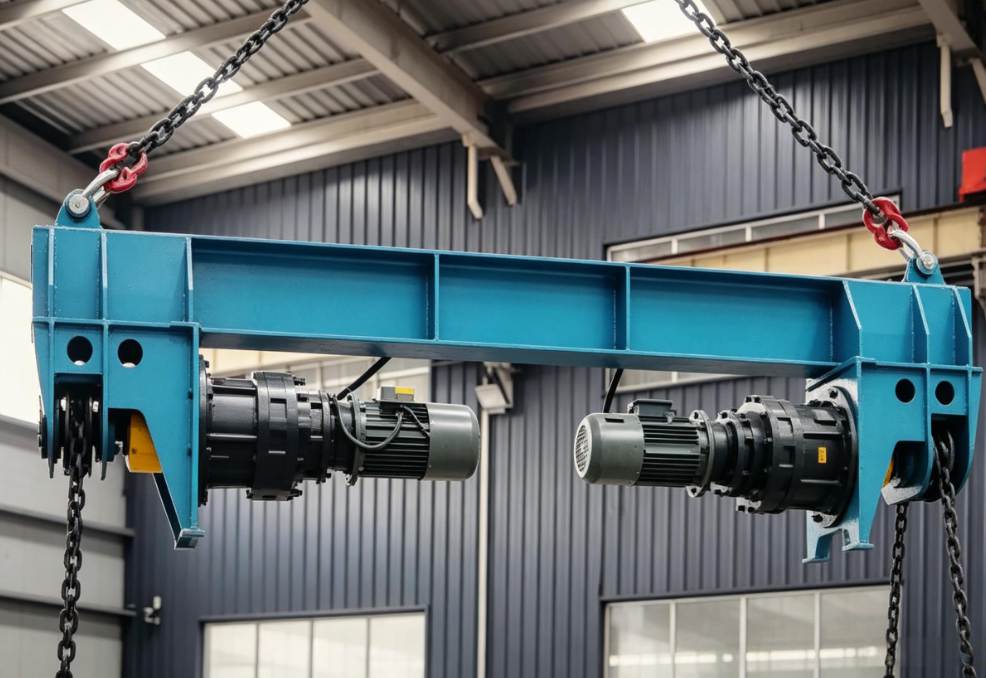

Chain Type Beam Rotator Flipping Machine

The chain type beam rotator manufactured by our company is a heavy duty flipping machine designed for H-beams, I-beams, box girders, steel structures and large welded structural parts. Driven by a high strength chain drive system, this beam rotator enables 0° - 360° continuous rotation and precise positioning of workpieces, effectively solving difficulties in workpiece posture adjustment, welding, assembly flipping and maintenance.

Structure of the Chain Beam Rotator

High Strength Chain Drive System

Featuring high torque output and excellent wear resistance, it meets the requirements of long-term continuous flipping operation for large steel beams.

Advantages

• High load capacity

• Stable operation

• Excellent impact resistance

• Suitable for flipping large workpieces

Heavy Duty Load-Bearing Steel Beam

Constructed from robust welded steel structure, it can be suspended on the hooks of adapted overhead crane to effectively bear heavy loads.

Structural Features

• High rigidity anti-deformation structure

• Multi-point stress support

• Highly stable flipping support

Optional Intelligent Electric Control & Variable Frequency Speed Regulation System

Equipped with an industrial PLC control system and variable frequency drive system, it realizes:

• Adjustable flipping speed

• Forward and reverse rotation

• Positioning stop

• Synchronous linkage control

• Remote control operation

Design Highlights

• Supports flipping loads up to 50 tons

• Enables 360° continuous flipping

• Non-damaging to workpieces with low collision risk

• Stable flipping for extra-long workpieces

• Synchronous chain transmission

• Customizable heavy duty flipping solutions

Technical Advantages

• Improves welding quality and work efficiency

• Reduces hoisting risks of large workpieces

• Operates stably for a long time in heavy industrial production environments

Professional Technical Parameters (Customizable)

Application Scenarios

• Steel structure manufacturing

• Bridge and rail transit component turning

• Wind power and energy equipment manufacturing

• Shipbuilding and heavy machinery manufacturing

KUNFENG provides customized chain type beam rotator solutions for different working conditions. We are committed to supplying safer, more efficient and stable heavy duty flipping machine for the heavy equipment manufacturing industry. Contact us to get a customized design solution tailored to your actual production requirements.
