50t Chain Load Rotation Equipment Export to Malaysia

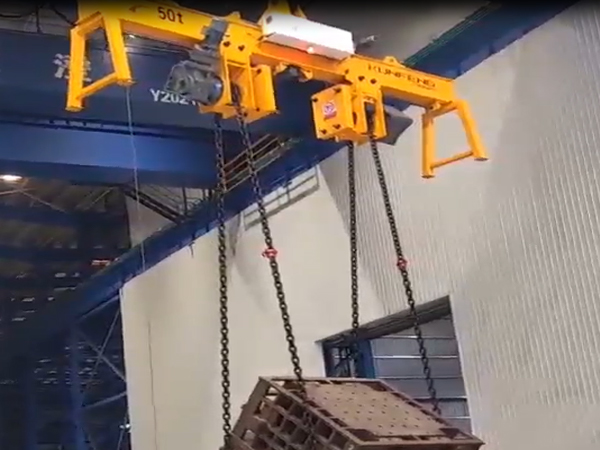

The chain load rotation device is a heavy duty auxiliary rotating equipment integrating lifting, turning and positioning functions. Used in combination with overhead crane, it lifts workpieces into the air and realizes smooth turning. Compared with traditional manual-assisted turning methods, it effectively solves the problems of difficult rotation of heavy workpieces, high operational risks and low production efficiency for clients.

Project Background: Upgrading Mold Turning Operations for a Foundry in Malaysia

The client is a well-known foundry enterprise in Malaysia, mainly supplying large castings for construction machinery, mining equipment and heavy industry sectors. With the expansion of production scale, the client has introduced multiple sets of large sand casting molds and precision casting molds. Some single molds weigh over 45 tons. The conventional method using two overhead cranes and steel wire ropes for turnover has obvious drawbacks:

• Low turnover efficiency, hindering production progress

• High operational risks

• Inaccurate turnover angle control

• Unstable workpieces during turnover

• Vulnerable mold surfaces

To achieve efficient and safe production, the client decided to purchase professional heavy duty mold rotating equipment for precise turning of heavy workpieces.

Client Requirements Analysis

• Capable of long-term stable rotation for large casting molds weighing up to 45 tons

• Realize 180° workpiece turning

• Synchronized operation of chains on both sides to prevent workpiece tilting during turnover

• Wireless remote control for enhanced operational safety

• Adapt to multi-shift continuous daily production

• Compliant with international industrial equipment safety standards

Customized Design Solution for Turning Requirements

• This turning device is fabricated from high strength steel, with its structure optimized via finite element analysis to ensure safe and reliable long-term operation under heavy loads.

• The system utilizes dual-side synchronized chain drive structure, allowing even large and irregularly shaped molds to be rotated smoothly and safely.

• Equipped with wireless remote control system, operator can perform lifting and rotating operations in safe area.

• Precise angle control is available to meet the demands of welding, assembly and inspection processes.

• Multiple safety protections are configured, including overload protection, limit protection, chain anti-drop protection and emergency braking system.

Equipment Installation, Commissioning and Operation Results

After the rotator device arrived at the client' s factory in Malaysia, the KUNFENG technical team provided remote guidance for installation and commissioning.

On-site tests show the following performance:

• Large molds weighing more than 45 tons could be rotated smoothly without noticeable shock or swinging.

• Turning time was reduced by approximately 50%.

• Mold maintenance efficiency increased by approximately 40%.

• Only one to two operators were required to complete turning operations.

Customer Feedback

"This 50 ton load rotation device fully meets our technical requirements. The equipment runs stably and is easy to operate, enabling precise turnover even for large casting molds. Compared with our previous working method, production efficiency and operational safety have been greatly improved. Your team demonstrated outstanding professionalism throughout the whole project from design and manufacturing to technical support."

Why Choose KUNFENG Load Turning System

• Extensive experience in international project cooperation

• Professional engineering design team

• Strict quality control system

• Customized solution support

• Comprehensive after-sales service

• Compliance with international safety certification standards

If you are looking for a rotator turning device for your workshop, please contact our engineering team and provide details including workpiece weight, dimensions, center of gravity and production process requirements. We will offer professional technical support and a tailored quotation for you.
