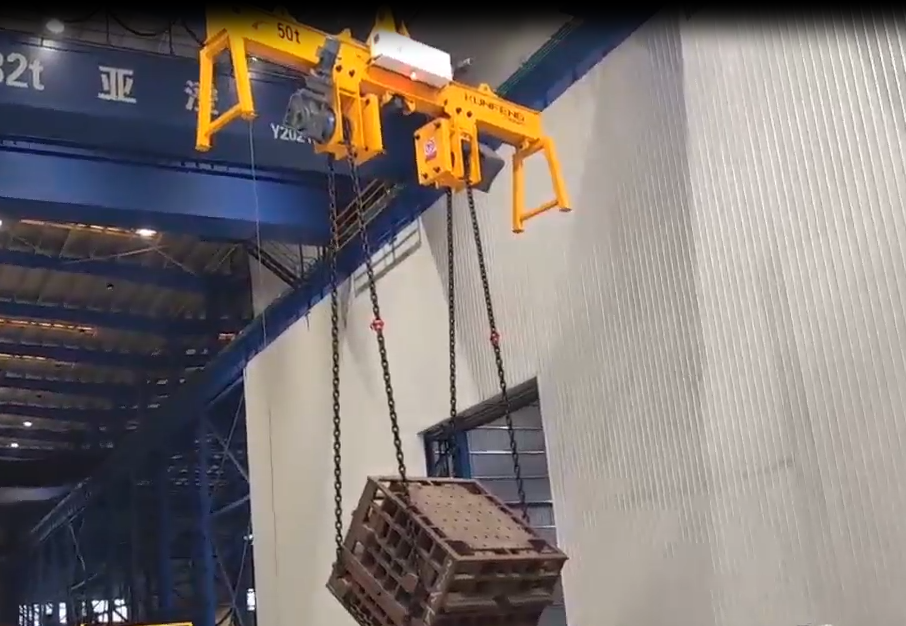

The casting mold chain turning device is an industrial equipment designed for flipping and positioning of heavy casting molds. Through high-strength synchronous chain drive, it can stably realize 360° stable flipping, locking and quick release of the mold, greatly improving production efficiency and reducing labor intensity. The device is suitable for sand casting, metal mold casting, die-casting molds and other scenes.

Core structure and working principle of chain turning device

  ● Dual chain synchronous drive: Two strong chains are pulled in parallel, and high-torque motor drive is used to ensure that the flipping process is stable and jitter-free.

  ● Precision guide system: The guide rail and roller support work together to keep the mold in a strict track and posture during the flipping process.

  ● Automatic locking mechanism: After flipping to the preset angle, the mechanical locking device quickly locks to ensure accurate and safe positioning of the mold.

  ● Human-machine interface control: Standard button control panel, optional PLC or touch screen, to achieve flexible programming and automated operation of flipping angle, speed and action program.

Product features of chain turning device

  ● The rated load can reach 1-50 tons, suitable for flipping molds of different sizes.

  ● Supports full-range flipping of 0°–180° to meet the requirements of different processes such as mold closing, maintenance, and cleaning.

  ● Equipped with overload protection, emergency stop button, limit switch and protective cover to fully ensure operational safety.

  ● The chain and key components are specially treated with anti-corrosion and anti-wear, suitable for high temperature, dust and mildly corrosive environments.

  ● The flipping speed, load-bearing weight and installation method can be customized according to customer needs.

Technical parameters (for reference)

  ● Rated load: 1t ~ 50t Customizable

  ● Turning angle: 0° ~ 360°

  ● Turning speed: 1~5 °/s

  ● Drive mode: electric drive

  ● Control mode: button/PLC automatic control

  ● Power supply: 380V/50Hz Customizable

  ● Working temperature: -10℃ ~ +60℃

KUNFENG Heavy Industry can provide efficient and safe flipping solutions for casting, die-casting and injection molding industries according to your actual production conditions. For more technical details or customized solutions, please feel free to contact our technical team!
