Chain Load Turning Units for Foundry Industry

Our chain load turning units are used in conjunction with overhead cranes or gantry cranes. The load turning units are hung from the existing crane and the load is then secured in place using sling attachments.

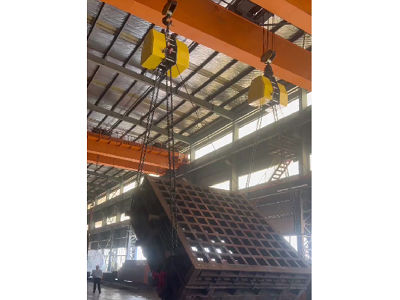

Our chain load turning units for rotating sand mold boxes are designed for the foundry industry and can efficiently and smoothly rotate and flip the sand mold boxes. The device uses high-strength chains and precision drive systems, has a strong load capacity, can carry heavy sand mold boxes and accurately control the rotation angle to ensure the uniformity and stability of the sand mold. Through the chain drive system, the turning device can achieve 360 degree rotation of the sand mold box, meet the needs of sand mold flipping and pouring during the casting process, avoid the heavy labor of manual handling, and improve work efficiency. It is widely used in foundries and sand mold processing production lines to help improve production efficiency and ensure the quality of castings.

Chain load turning units advantages

  ● Safe and trouble-free turning and rotation of large loads

  ● Turning material can be stopped at any desired position

  ● No damage to the turning load

  ● Prevents accidents during turning

  ● Mobile applications

Some parameters of our load turning units

  ● Basic unit with suspension for crane hook

  ● Any angle of turning possible

  ● Load capacity: 1,000 - 50,000 kg

  ● Push-button control panel and emergency stop, including control cable with customizable length

  ● Operating voltage: 400 V/50 Hz/three-phase current

  ● Control voltage: 48 V

  ● Protection degree: IP54

  ● Operation mode: intermittent operation

Contact us for a free custom design, our load turning units are durable, sturdy and flexible solutions designed to meet your workplace workpiece turning needs. While our chain units excel in foundry and sand mold applications, if your production requires enhanced surface protection for finished workpieces or delicate structures, check out our Belt Type Load Turning Units which utilize flexible industrial-grade composite fiber belts.
