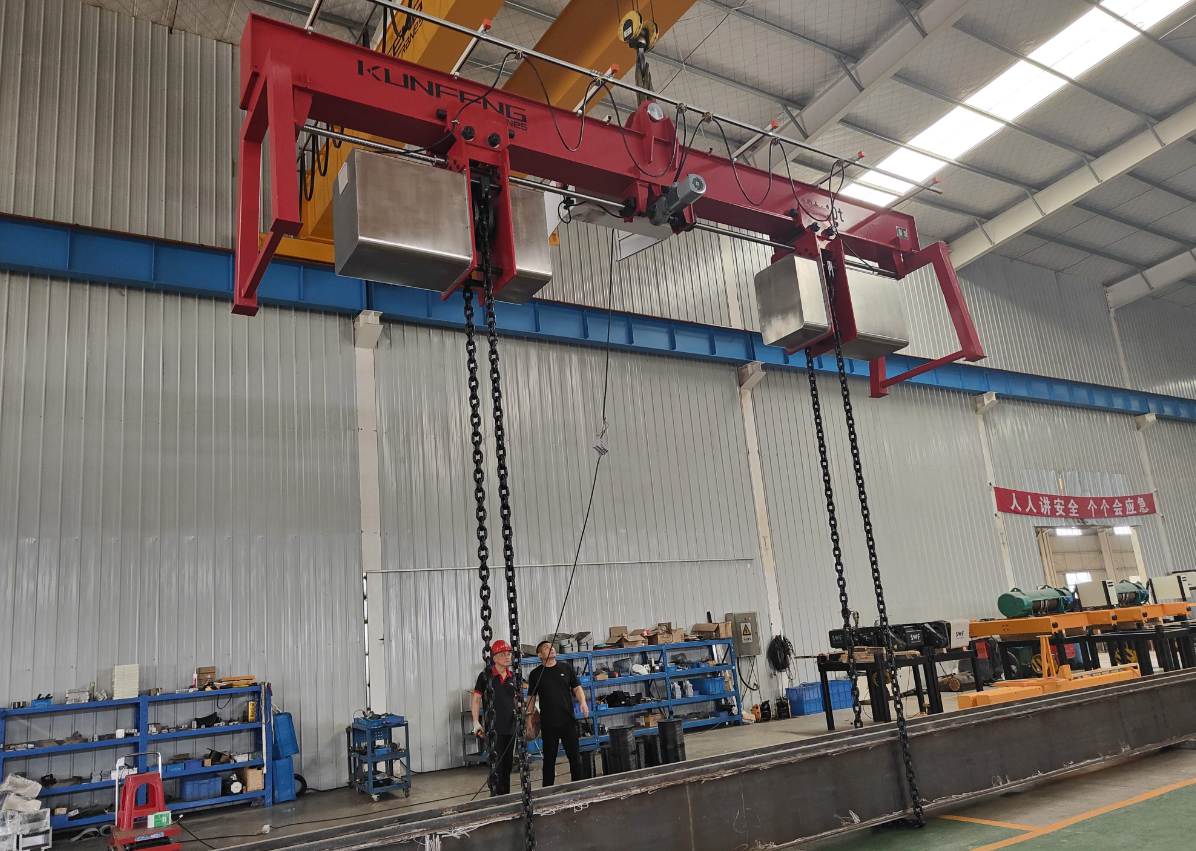

Chain Flipping Rotator for H-Beam Rotation

In steel structure manufacturing, bridge engineering, heavy equipment processing and large welding workshops, H-beams serve as critical load-bearing components. They are typically characterized by large dimensions, heavy weight and complex center of gravity. During welding, spraying, assembly and inspection, workpieces frequently require flipping and angle adjustment. To solve this challenge, our chain flipping rotator adopts synchronous drive system and high strength chain mechanism, enabling safe lifting, precise positioning, and 360° continuous rotation of H-beams, greatly improving production efficiency and operational safety.

Designed for Large H‑Beam Turning Applications

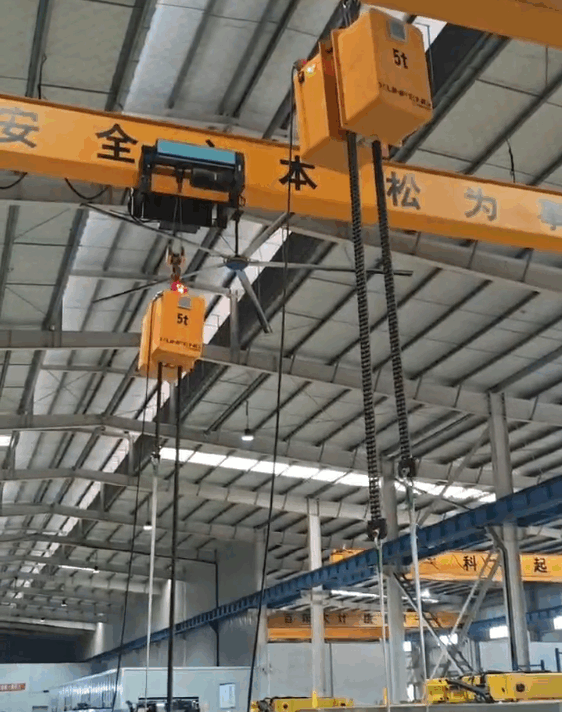

The chain type beam rotator is a heavy duty material lifting device integrating lifting, turning and positioning functions. It is specially designed for the turning requirements of H-beams, I-beams, box girders, steel structural components and large welded parts. The equipment features dual lifting point synchronous drive structure. Through the chain drive system, it lifts H-beams into the air and drives the workpiece to rotate slowly, keeping the load under full control at all times. The entire process requires no manual intervention, achieving smooth, continuous and controllable turning operations, significantly enhancing lifting safety and work efficiency.

Continuous 360° Rotating Device for Multi-Process Fabrication

During steel structure production, workpieces often require multi-side welding, grinding, inspection and painting. The load rotator continuous rotation control from 0° to 360°, allowing operators to accurately adjust the workpiece to any angle according to process requirements.

Equipment Advantages

• Achieves stop and positioning at any angle

• Supports bidirectional forward and reverse turning

• Smooth and adjustable turning speed

• Improves welding and assembly efficiency

• Completes multi-angle processing in a single lift

Synchronous Drive Technology Ensures Safe and Stable Turning

The load turning system adopts dual-motor synchronous control, keeping the running speed of chains on both sides consistent to avoid workpiece tilting or twisting caused by speed differences.

The Synchronous Control System Features:

• Automatic load balancing

• Prevention of eccentric load turning

• Improved positioning accuracy

• Extended service life

High Strength Chain Turning Adapts to Heavy Duty Conditions

As the core rotating component of the rotator device, high strength alloy chains are manufactured with strict material selection and processing, maintaining stable performance under heavy loads and continuous operation, providing solid support for large workpiece rotation.

Advantages of Industrial Grade Lifting Chains

• Excellent tensile strength to meet heavy duty turning demands

• Outstanding wear resistance for high frequency continuous operation

• Good impact resistance to withstand dynamic loads during startup, stopping and rotating

• Long service life, reducing equipment replacement and maintenance frequency

Technical Parameters: Customizable Solutions Available

Quality and Safety Assurance in Strict Compliance with Industry Standards

• High quality rotator turning devices are designed and manufactured in strict accordance with national and industry standards. Key components undergo material testing, weld inspection, load testing and fatigue testing.

• The manufacturer has established a complete quality management system, implementing strict quality control from raw material procurement, processing, to finished product inspection, ensuring stable and reliable product performance.

• Before delivery, each set of equipment completes rated load testing and safety performance verification, accompanied by complete product documentation, operation manuals, and inspection reports to support standardized use and management.

Safe and Efficient Load Turning Solutions for Steel Structure Manufacturers
