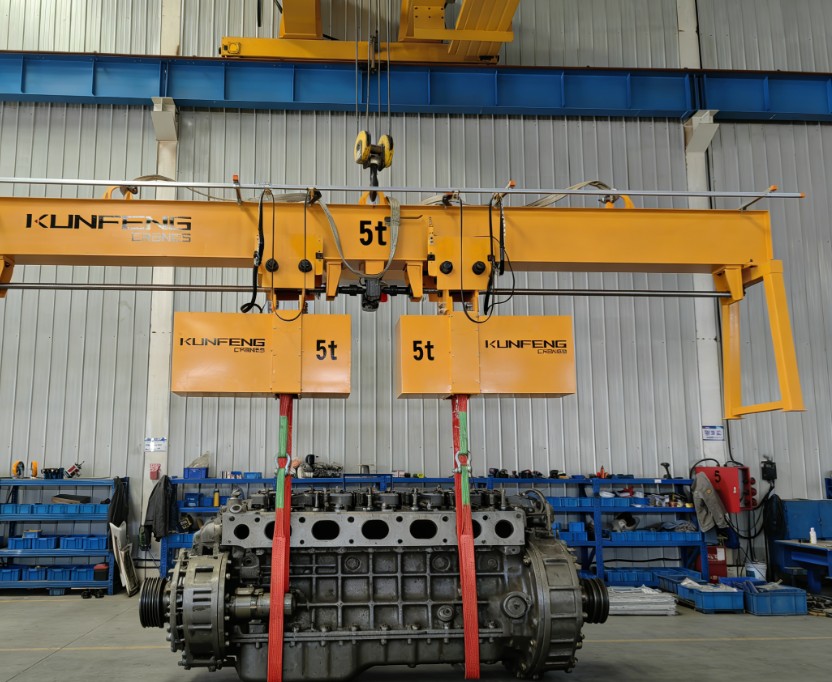

​Crane Mounted Load Rotator for Diesel Engine

During the manufacturing, maintenance and assembly of diesel engines, the engine bodies are usually heavy and structurally complex. Particularly during inspection, turning or precision assembly, extremely high requirements are imposed on safety and stability. The crane mounted rotator for diesel engines is installed on overhead cranes to achieve safe turning, precise positioning and efficient handling of engines in mid-air. It is widely used in engine manufacturing plants, shipbuilding industry, mining equipment manufacturing and heavy machinery assembly workshops.

Product Features of Crane Mounted Load Rotator

• Made of high-strength structural steel, verified by finite element structural analysis and strict welding process control, it can carry diesel engine components from 500 kg to 20 tons.

• Equipped with an electric drive mechanism to ensure smooth rotation of the engine during turning, avoiding sudden shaking or loss of control.

• Can be directly connected to overhead cranes and put into use without complicated installation procedures.

• High-strength belt slings are available to prevent damage to the engine surface.

• Compared with traditional turning methods, this equipment reduces manual involvement and allows single-person operation for lifting and turning.

Main Technical Parameters (For Reference)

How to Select the Correct Model? Five Key Parameters

• Maximum working load

• Required turning angle

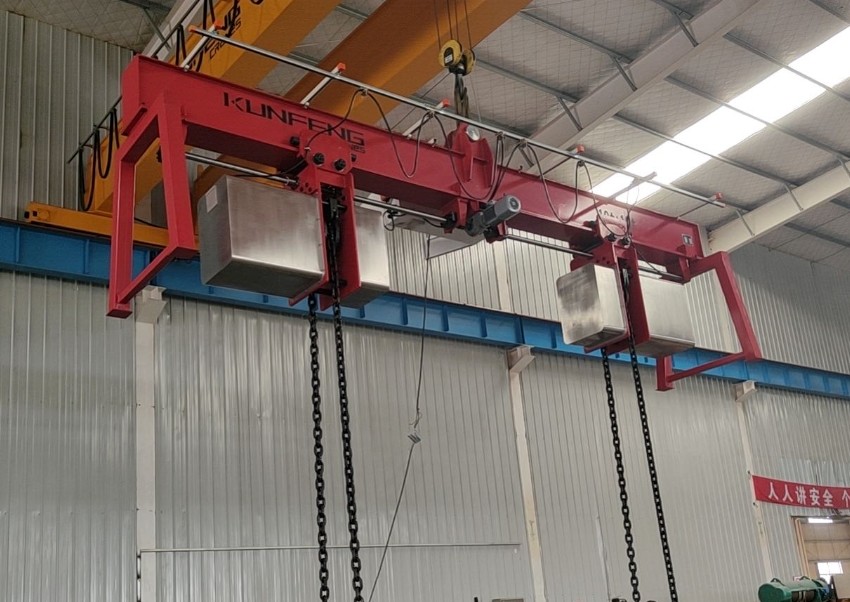

• Belt-type or chain-type sling selection

• Crane interface

• Working environment

Installation, Operation and Maintenance Recommendations

Installation

• To be performed by a qualified crane installation engineer.

• Before installation, check whether the crane' s rated lifting capacity, lifting height and rotation radius meet the requirements.

• Verify locking torque, lubrication and safety device functions item by item according to the assembly manual.

Operation Procedure

• Hang the turning device on the crane hook and gradually lift it to the working height.

• Start the turning drive and test run at low speed to confirm no abnormalities.

• Stop after turning to the target angle and check the positioning status.

Maintenance Cycle

• Before each shift: visual inspection of appearance and key fasteners.

• Monthly: lubricate bearings and moving parts, check wear of locking components.

• Yearly: comprehensive inspection (bearing, reducer, gear, structural crack detection).

Why Choose a Professional Turning Device

Using a professional turning device not only ensures lifting safety but also significantly improves production efficiency. Especially in modern production lines, safety, stability and precise positioning have become important standards for material handling equipment. As a professional manufacturer, KUNFENG can provide customized turning device solutions according to actual working conditions to ensure perfect matching with existing crane systems.

If you are looking for a professional and reliable load turning device manufacturer, contact us now for free technical consultation and design proposal quotation!

FAQ

Q: How heavy a diesel engine can the load turning device carry?

A: Standard models cover loads from 0.5 t to 20 t. Specific customization is required based on engine weight, center of gravity and matching crane parameters.

Q: Can it be used directly with existing overhead cranes?

A: Yes. Custom interfaces are available according to the hook, lifting capacity and installation position of your existing crane to ensure seamless connection.

Q: Is the turning action electric or manual?

A: Both drive modes are available. Electric drive (with variable frequency speed regulation) is suitable for frequent, high-precision operations; manual gearbox is ideal for low-volume or cost-sensitive applications.

Q: How to ensure safety during turning?

A: The product adopts high-strength belt slings, dual electrical locking, overload protection and limit devices, undergoes load and function testing before delivery.
