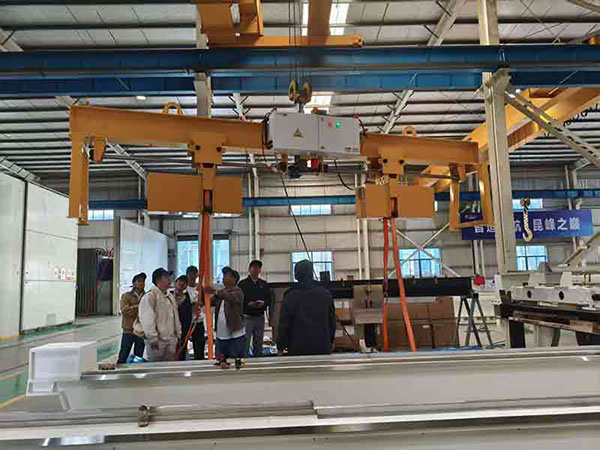

Avoid worker injuries, eliminate crane accidents, and safeguard your high value workpieces during rotation. Our industrial load turner systems are designed for heavy production and provide smooth, controlled and exact load rotation of molds, coils, structural steel and heavy machinery to 20 tons.

Core Mechanical Components & Workflow of Load Turner System

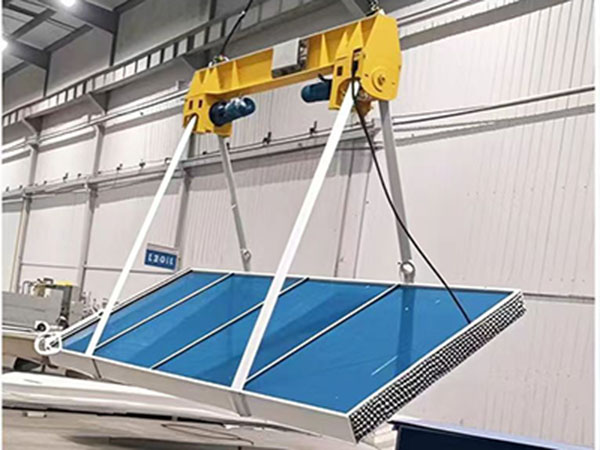

Suspension & Frame: The device attaches directly to a crane hook via a central lifting eye or spreader beam configuration. It contains integrated electric motors, gearboxes, and adjustable drive sheaves/wheels.

Friction Belt Drive: High-strength synthetic belt or chains form continuous loops around the workpiece. These straps sit directly inside the motorized drive sheaves at the top and loop underneath the load.

Controlled Friction Transfer: When the motor engages, it turns the drive sheaves. Friction between the belts and the drive wheels imparts continuous linear motion to the straps. As the straps slide, they apply rotational torque to the workpiece, turning it steadily around its center of gravity.

Variable Distance Control: Advanced rotators feature motorized adjustable wheel spacing. Moving the drive sheaves closer together or further apart accommodates varying load geometries and controls belt tension to prevent slipping or binding.

Key Features & Benefits of Load Turner in Operation

Controlled Rotation: The smooth electric mechanism provides continuous, jerk-free, drop-free 90°, 180° or 360° rotation.

Maximum Safety at Work: Integrated self-locking gears, automated braking systems and overload protection prevent free-falling or unintentional slides during flipping.

Lowers Labor Costs & Boosts Throughput: Replaces risky 3-person crane flip techniques with simple 1-person wireless remote control, cuts load turn time by as much as 70%.

Custom Load Turner System for Different Heavy Industries

Our industrial load rotators provide versatility for a number of industrial material handling applications:

Injection molds & stamping dies: Safe opening, closing, maintenance and 90°/180°/360° flipping of large tooling molds in the automotive and plastics sectors.

Heavy Machinery & Fabrications: Gearbox housings, engine blocks, wind turbine parts, big weldments that need to be positioned at different angles for welding and inspection.

Precast Concrete & Construction Structural Elements: Transporting huge concrete beams and large steel structures without complicated multi-crane rigging arrangements.

Technical Specifications of Load Rotators

Below is our quick-reference model guide. All parameters can be customized according to your facility's spatial constraints and power requirements.

Why Choose Kunfeng Load Turner System?

As a professional expert in producing lifting equipment, Kunfeng has earned the industry's favor due to its uncompromising quality:

Maximum Safety & Stability: The high-rigidity structural design and many safety prevention measures such as self-locking transmission and overload warnings make this a 100% safe workpiece turning solution.

High Precision Transmission & Efficiency: It is driven by high precision drive systems to realize smooth and steady 90°/180°/360° turning without impact and stutter, which can effectively cut the cycle time and improve the overall production efficiency.

Expert Customization: With a thorough understanding of pain points in industry-specific applications, Kunfeng offers customized solutions for load capacity, table structures, control systems, and more, to meet complex needs in applications such as molds, steel coils, plates, and wind power components.

Built to Last & Dedicated Service: Our equipment is manufactured with high quality components and precise manufacturing so it has a low failure rate and long life.

Certified Quality & Brand Trust: Fully CE and ISO 9001 compliant, Kunfeng load turners undergo 100% dynamic overload testing before dispatch.

Every Kunfeng is a reliable engine to enhance quality and efficiency, together with timely and full-service after-sale support. Don't let manual flipping limit your plant's productivity or compromise worker safety. Our engineering team provides custom capacity designs, spatial layout verification, and tailored spreader beam configurations within 24 hours. Contact us.

Q1: Will the straps slip or bind during the turning process?

A: No. The system features Variable Distance Control, which dynamically adjusts the spacing between the drive sheaves based on the workpiece's size and shape. This precisely controls belt tension to effectively prevent slipping or binding.

Q2: Will the synthetic belts or chains scratch high-precision workpiece surfaces?

A: No. High-strength synthetic fiber belts provide necessary friction while protecting delicate surfaces. For workpieces with sharp edges or corners, specialized anti-cut protective sleeves or chain options are available.

Q3: Can the load turner be customized for limited headroom or specific voltage requirements?

A: Yes. Kunfeng provides full custom engineering. We tailor equipment dimensions, crane hook interfaces, electrical voltages, and frame designs to fit your facility constraints and load geometries.

Q4: Can this load turning device be attached to any existing overhead crane?

A: Yes. Designed with a central lifting eye or spreader beam, the unit attaches directly to standard crane hooks without requiring major modifications to your existing lifting infrastructure.

Q5: What after-sales support and maintenance service does Kunfeng provide?

A: Kunfeng offers full-lifecycle after-sales support, including installation guidance, operator training, routine maintenance advice, and fast spare parts supply to ensure minimal downtime and long operational life.
