Chain Rotating Equipment for Steel Beam

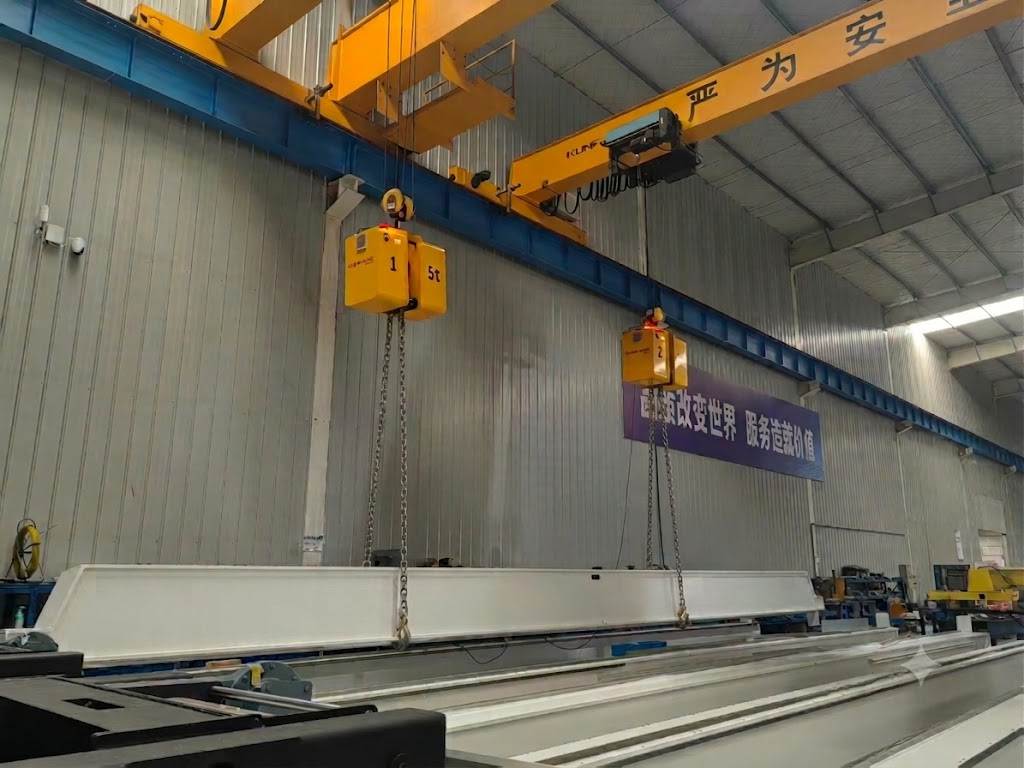

KUNFENG chain rotating equipment is an industrial device that realizes automatic steel beam rotation through motor, reduction mechanism, chain drive system and wireless remote control. Installed under existing overhead crane, this equipment can perform horizontal or vertical turning operations on H-beams, box beams, I-beams and other large structural steel components, improving processing efficiency and operational safety.

Working Principle of the Steel Beam Rotator

The rotator device is connected to the steel beam via chains, with the motor drive system providing power to slowly rotate the steel beam through the chain drive. Operators can adjust the rotation speed and stop position via the control system to achieve precise positioning of the steel beam at different angles.

Specific Operation Process:

• Hoist the steel beam to the working area of the turning equipment

• Fix and support the steel beam using chains

• Start the drive system to rotate the steel beam

• Complete 90°, 180° or 360° turning according to processing requirements

• Lock the steel beam at the target position for welding, assembly or inspection

Advantages of Chain Rotating Equipment for Steel Beam Production

• Improves structural steel production efficiency

• Enhances operational safety

• Realizes 360° controlled rotation and positioning

• Adapts to heavy duty industrial environments

• Supports non-standard customized design

How to Select the Right Load Turning Equipment

• Select the rated load capacity according to the maximum weight of the steel beam

• Clarify the size and structural form of the steel beam

• Determine requirements for turning speed and angle

• Choose between belt type or chain type turning methods

• Customize manual or electric adjustment for lifting point spacing

• Select the protection class based on the working environment

Professional Customized Turning Equipment for Reliable Heavy Load Rotation

KUNFENG specializes in the research, development and manufacturing of industrial lifting equipment and material handling systems. Based on customers’ workpiece specifications, production processes and on-site installation conditions, we provide complete solutions covering engineering design, equipment manufacturing, installation and commissioning. If you are looking for a reliable turning solution for steel beam rotation, feel free to contact us for professional technical support and customized quotation.
