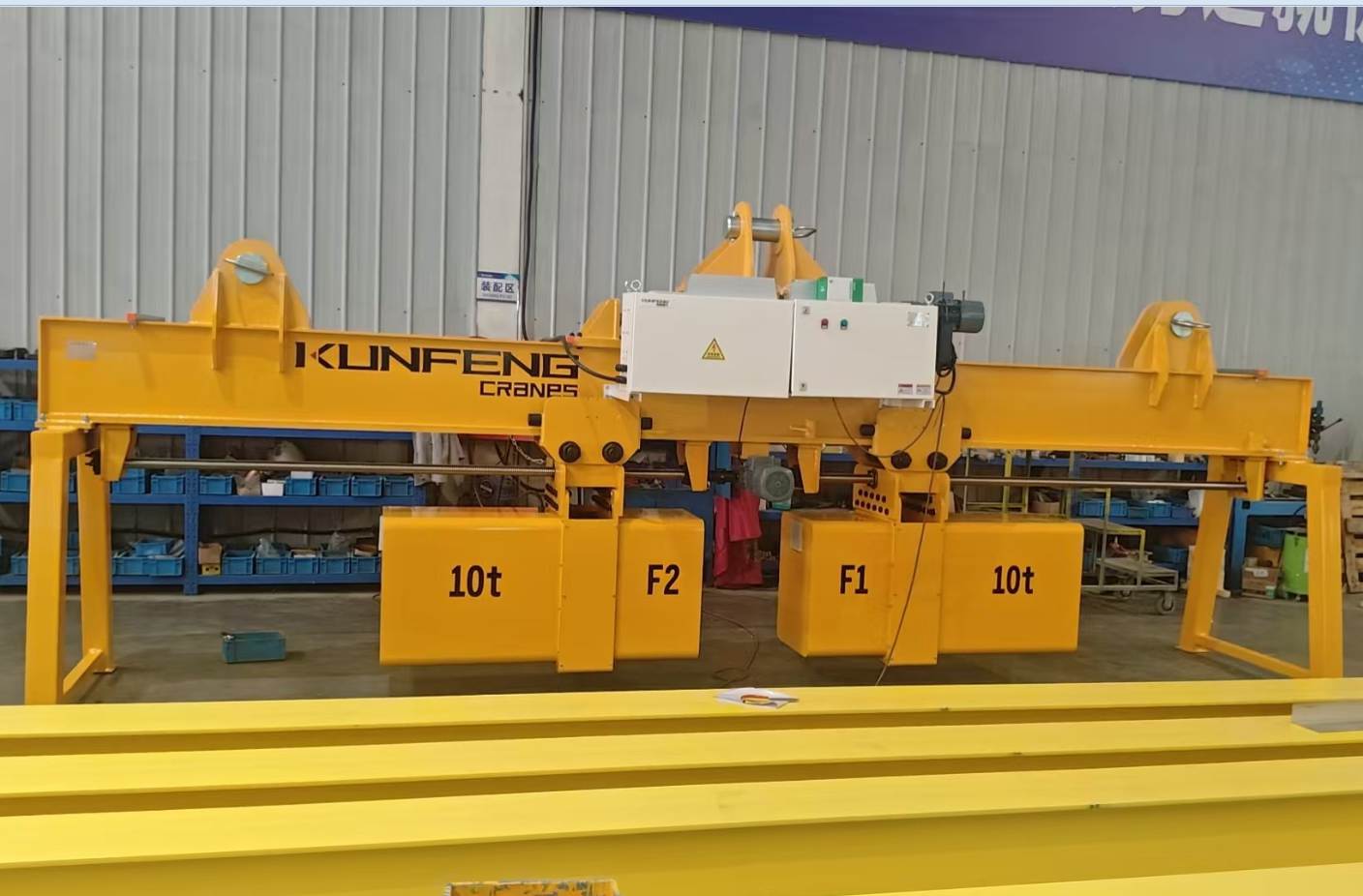

20T Rotator Turning Device Exported to Brazil

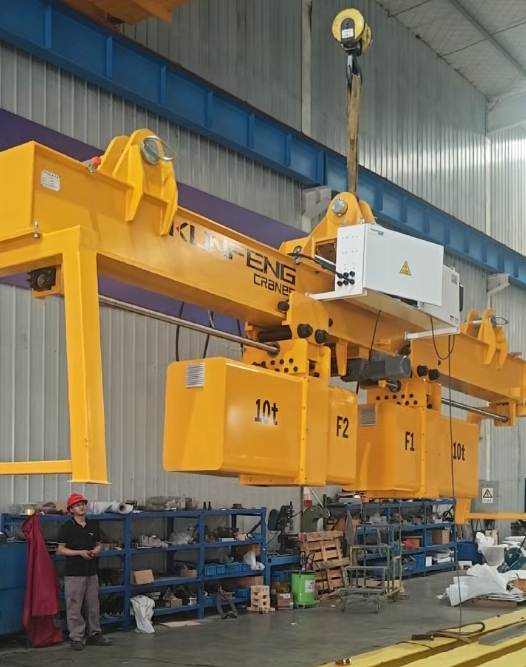

The KUNFENG rotator turning device is an industrial lifting auxiliary system designed for large workpiece turning, welding operations and assembly handling. The rotator adopts dual lifting point synchronized rotating structure and uses electric drive system to achieve smooth and controlled workpiece rotation, effectively reducing lifting risks while improving production efficiency. Compared with traditional manual-assisted turning methods, the electric load rotator offers smoother operation, more precise turning control and higher operational safety, making it ideal for modern heavy duty manufacturing environments.

Project Background & Customer Technical Requirements

Country: Brazil

Industry: Large Steel Structure Fabrication Plant

Customer Requirements：Frequent 180° to 360° turning of large steel structural parts during welding, assembly and surface treatment. A set of industrial turning device is required to improve production efficiency and reduce manual operation risks.

Technical Specifications

Design Features of Customized Rotating Device

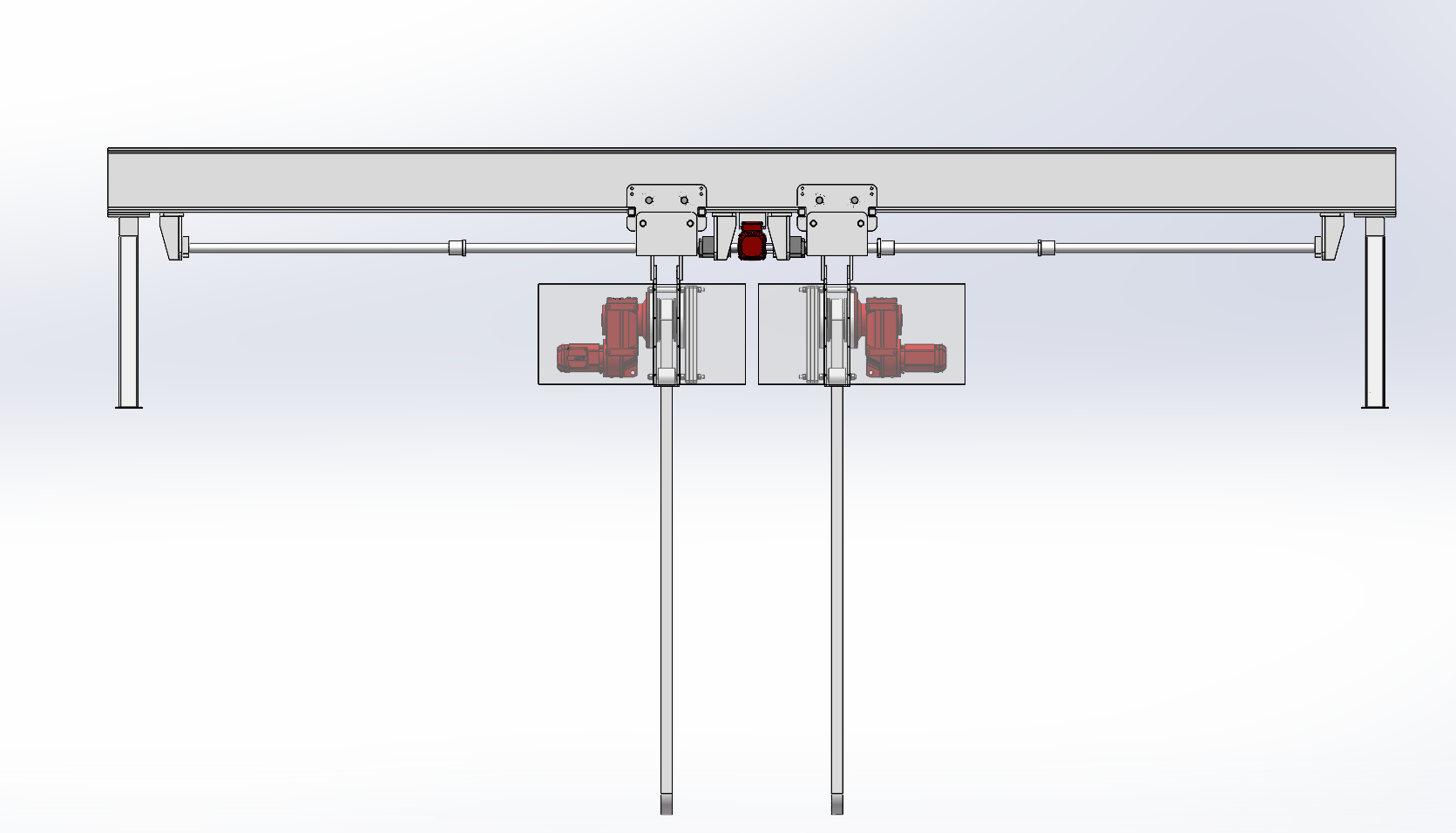

• Adopts industrial grade synchronized turning drive structure to ensure both lifting points operate synchronously during rotation, effectively preventing workpiece tilting or slipping.

• The main structure is manufactured using high strength steel and optimized through finite element stress analysis, ensuring reliable long-term operation under heavy load working conditions.

• Equipped with variable frequency speed control system for smooth start/stop and slow, precise turning, improving workpiece positioning accuracy.

• Uses flexible belt turning slings to protect workpiece surfaces from damage.

• A screw rod mechanism is incorporated to achieve precise adjustment, stable support and synchronized control during workpiece rotation.

• Multiple safety protection functions are integrated into the system to effectively reduce operational risks during heavy duty turning operations.

Installation Results: Improved Turning Efficiency & Operational Safety

After the turning device was exported to Brazil, we provided the customer with complete technical documentation, remote installation guidance, and commissioning support to ensure the equipment could be quickly put into production.

After commissioning, the customer achieved:

• Significantly reduced workpiece turning time

• Lower manual handling requirements

• More efficient welding station switching

• Improved turning stability

• Reduced on-site operational risks

• Stable support for continuous production operations

Customer Feedback: Stable & Reliable for Heavy Duty Production

"This load turning device operates very smoothly and reliably. Even under heavy duty working conditions, it maintains excellent synchronization and operational safety, greatly improving our welding and assembly efficiency. The equipment structure is robust and easy to operate, fully meets our heavy steel structure rotating requirements."

Why Choose KUNFENG Load Rotator

As a professional industrial load rotator manufacturer, we have extensive experience in heavy duty turning systems and customized material handling solutions. We provide professional solutions tailored to different industrial applications.

Our Advantages

• Extensive project experience in industrial turning solutions

• Support for non-standard customized design

• Complete export and technical support services

• One-on-one solution design by professional engineering team

• Comprehensive after-sales service system

• International standard special equipment certifications

If you are looking for a customized turning device for heavy workpiece rotating, please feel free to contact our engineering team for professional technical support and equipment quotation. We will provide safe and efficient industrial turning solutions based on your workpiece dimensions, load capacity and on-site conditions.
